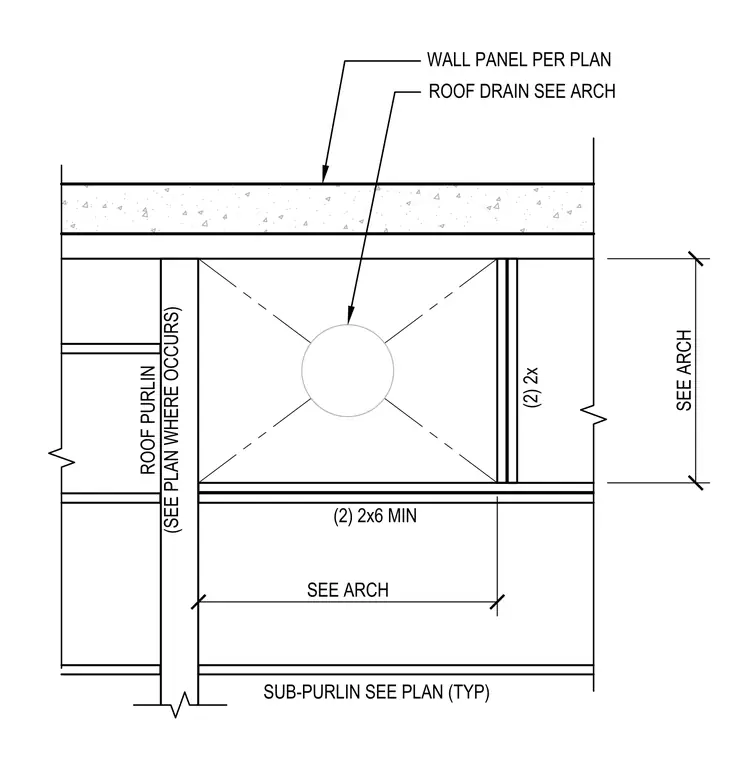

A header consisting of two 2x6 minimum members frames the roof drain opening. Double 2x sub-purlins, sized per the structural plan, flank the opening. Roof purlins occur as indicated on the structural plan. Wall panel and specific roof drain location are coordinated with the architectural drawings.
Text on the drawing
(2) 2x6 MIN (2) 2x SUB-PURLIN SEE PLAN (TYP) WALL PANEL PER PLAN ROOF DRAIN SEE ARCH ROOF PURLIN (SEE PLAN WHERE OCCURS) SEE ARCH SEE ARCH
