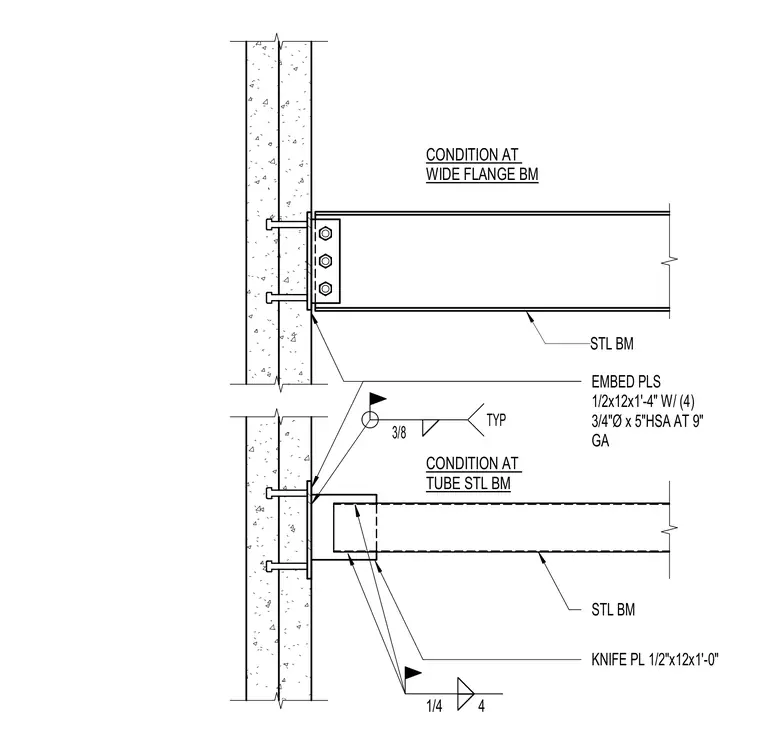

A steel beam connects to a precast concrete wall panel using a half-inch by twelve-inch by one-foot-four-inch embed plate anchored by four three-quarter-inch diameter by five-inch heavy stud anchors at nine-inch gauge. The wide flange steel beam condition utilizes a bolted connection to the wall assembly. The tube steel beam condition utilizes a half-inch by twelve-inch by one-foot knife plate welded to the embed plate.
EMBED PLS 1/2x12x1'-4" W/ (4) 3/4"Ø x 5"HSA AT 9" GA STL BM STL BM KNIFE PL 1/2"x12x1'-0" CONDITION AT WIDE FLANGE BM CONDITION AT TUBE STL BM 3/8 TYP 1/4 4
