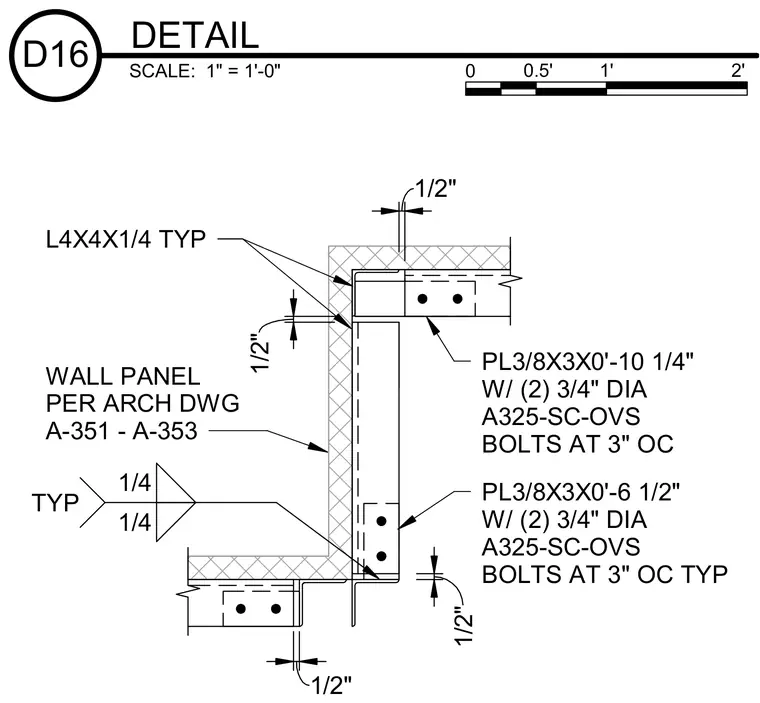

A structural wall panel connection configured with typical L4x4x1/4 angles. The assembly incorporates two connection plates measuring 3/8 inch by 3 inches by 0 feet 6 1/2 inches and 3/8 inch by 3 inches by 0 feet 10 1/4 inches. Each plate is secured using two 3/4-inch diameter A325-SC oversized bolts spaced at 3 inches on center. A one-half-inch clearance is maintained at the panel joints. The wall panel is provided per architectural drawings A-351 through A-353.
L4X4X1/4 TYP PL3/8X3X0'-6 1/2" W/ (2) 3/4" DIA A325-SC-OVS BOLTS AT 3" OC TYP PL3/8X3X0'-10 1/4" W/ (2) 3/4" DIA A325-SC-OVS BOLTS AT 3" OC WALL PANEL PER ARCH DWG A-351 - A-353 1/4 1/4 TYP 1/2" 1/2" 1/2" 1/2" SCALE: 1" = 1'-0" D16 DETAIL 0 0.5' 1' 2'
