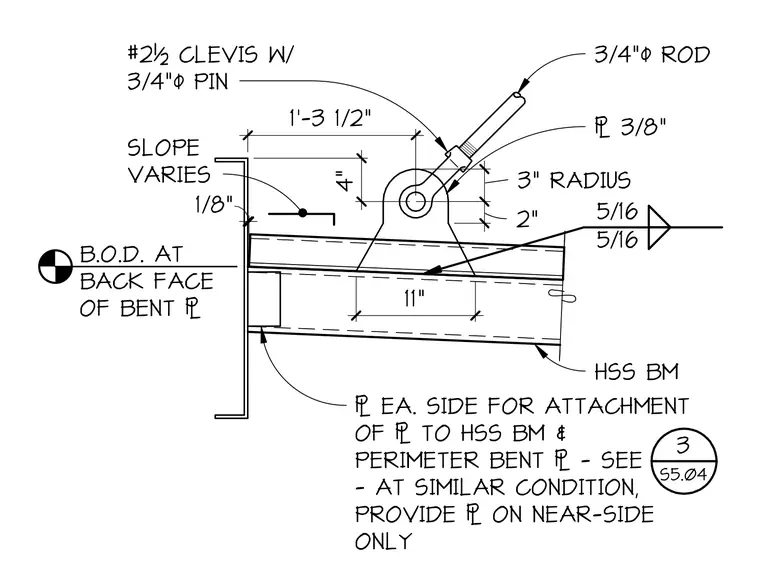

A three-quarter-inch diameter rod with a number 2-one-half clevis and three-quarter-inch pin attaches to a three-eighth-inch plate welded to the top of a hollow structural section beam. A five-sixteenth-inch fillet weld secures the plate to the beam. A bent plate attaches to the back face with an eighth-inch bottom-of-deck clearance, and a plate is provided on each side for attachment to the hollow structural section beam and perimeter bent plate. At similar conditions, a plate is provided on the near-side only.
1/8" B.O.D. AT BACK FACE OF BENT & #2½ CLEVIS W/ 3/4") PIN & EA. SIDE FOR ATTACHMENT OF & TO HSS BM & PERIMETER BENT & - SEE - AT SIMILAR CONDITION, PROVIDE & ON NEAR-SIDE ONLY 3/4") ROD 11" 5/16 5/16 & 3/8" 3" RADIUS 2" 2" 3" 1'-3 1/2" 4" 3 S5.04 HSS BM SLOPE VARIES
