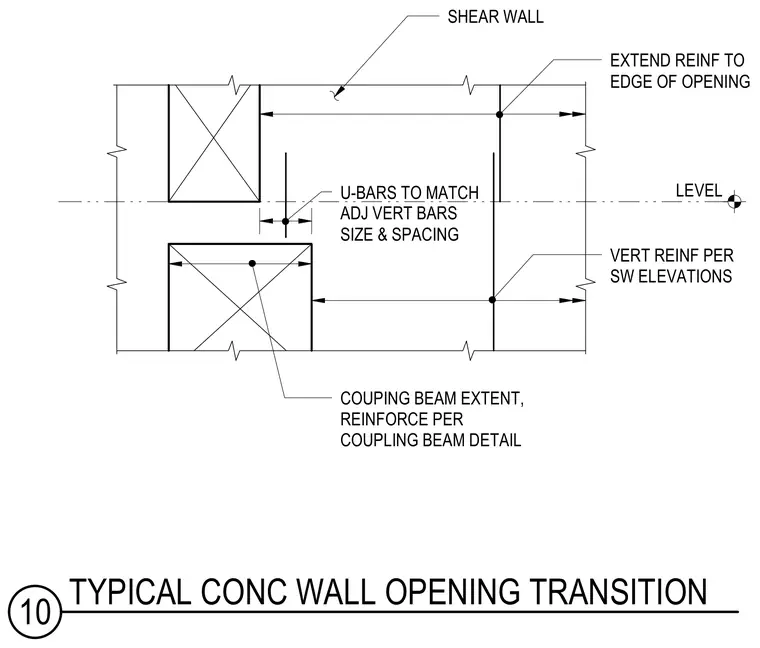

Reinforcement around concrete shear wall openings requires vertical reinforcing bars matching the shear wall elevations extended to the edge of the opening. U-bars match adjacent vertical bars in size and spacing. Coupling beam extents are reinforced per the coupling beam detail.
SHEAR WALL LEVEL EXTEND REINF TO EDGE OF OPENING VERT REINF PER SW ELEVATIONS U-BARS TO MATCH ADJ VERT BARS SIZE & SPACING COUPING BEAM EXTENT, REINFORCE PER COUPLING BEAM DETAIL 10 TYPICAL CONC WALL OPENING TRANSITION
