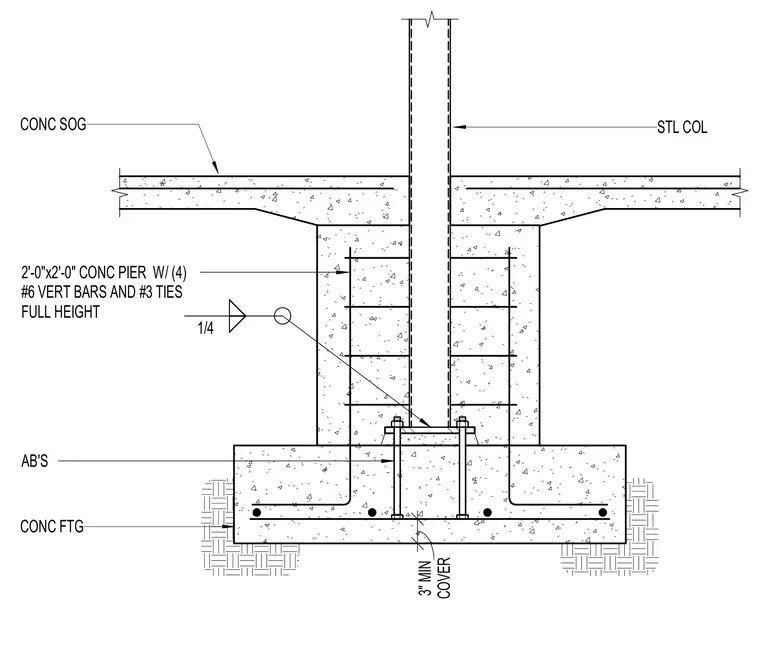

A steel column connects to a concrete footing via anchor bolts embedded into a two-foot square concrete pier. The reinforced concrete pier contains four vertical number six bars and number three ties running full height. The concrete footing provides a minimum three-inch cover over bottom reinforcing bars. A concrete slab on grade abuts the pier at the upper level.
STL COL CONC SOG CONC FTG AB'S 2'-0"x2'-0" CONC PIER W/ (4) #6 VERT BARS AND #3 TIES FULL HEIGHT 1/4 COVER 3" MIN
