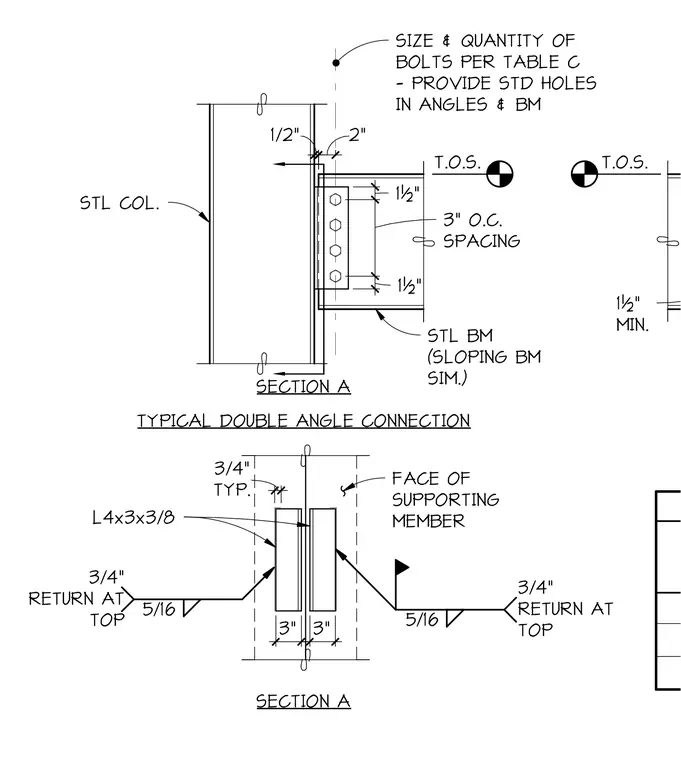

A steel beam connects to a supporting steel column using double L4x3x3/8 angles framing the web. The angles attach to the supported beam web with bolts sized and quantified per table C, utilizing standard holes and a three-inch on-center vertical spacing with one-and-a-half-inch edge distances. The angles connect to the face of the supporting member using five-sixteenth-inch fillet welds with three-quarter-inch returns at the top. A half-inch clearance is maintained between the beam end and the column face.
T.O.S. 1½" 3" O.C. SPACING 1½" 1/2" 2" SIZE & QUANTITY OF BOLTS PER TABLE C - PROVIDE STD HOLES IN ANGLES & BM STL BM (SLOPING BM SIM.) STL COL. TYPICAL DOUBLE ANGLE CONNECTION T.O.S. 1½" MIN. SECTION A TYP. 3/4" L4x3x3/8 5/16 3/4" RETURN AT TOP SECTION A 5/16 3/4" RETURN AT TOP FACE OF SUPPORTING MEMBER 3" 3"
