Structural · S-RJFB8

Typical Glulam To Steel Connection

Materials

Steel Timber / Wood

Elements

Beams Connections / Plates Decks Roofs

Connections

Deck Attachment Timber / Mass-Timber Connection

About this detail

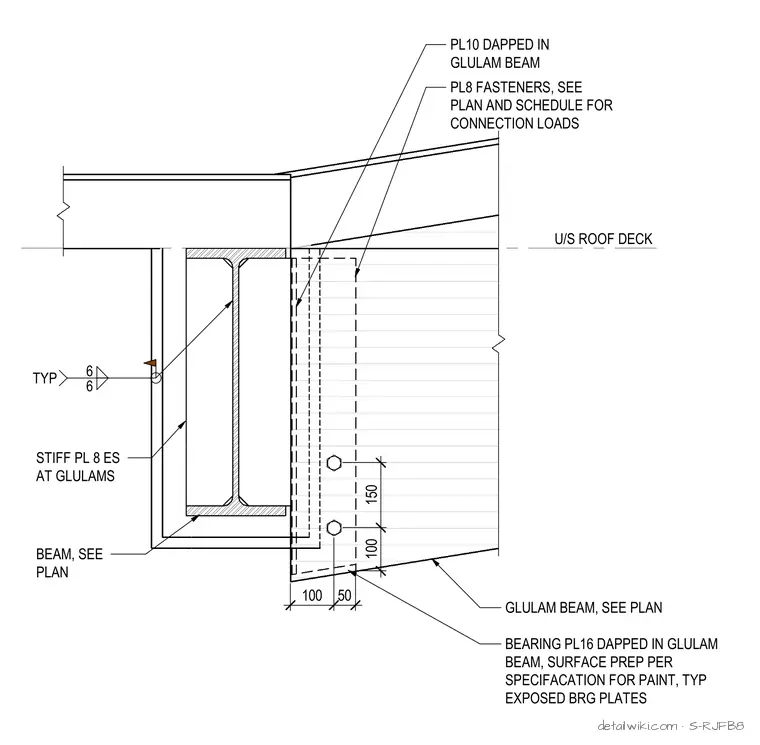

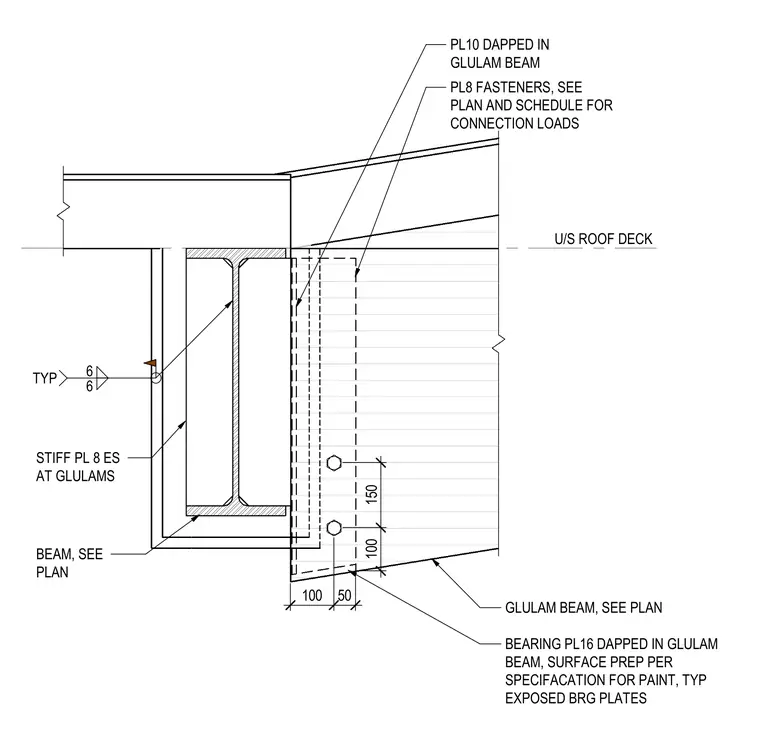

A glulam beam bears onto a structural steel beam connection utilizing a dapped bearing plate with a thickness of 16 millimeters, featuring surface preparation per specification for paint on typical exposed bearing plates. The connection includes eight-millimeter stiffener plates placed on each side at the glulams, welded with typical six-millimeter fillet welds. Additional plate fasteners, plate eight thickness, are detailed with connection loads sized per plan and schedule. The glulam beam is dapped with a ten-millimeter plate, sitting below the underside of the roof deck.
