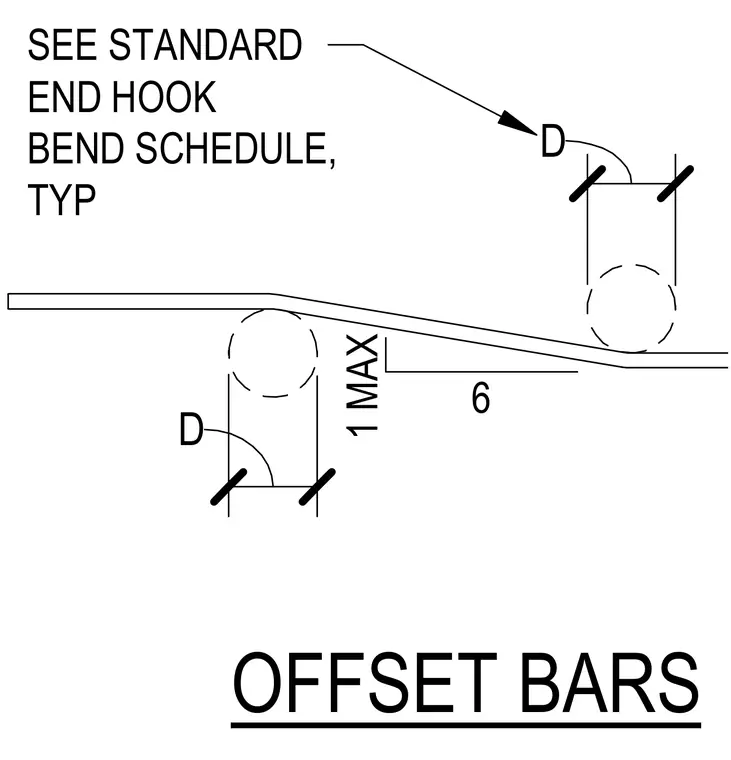

Offset reinforcing bars within concrete members transition longitudinally with a maximum slope of one to six between parallel alignments. Transverse ties or stirrups are positioned at the bends with standard end hook dimensions per the standard bend schedule.
