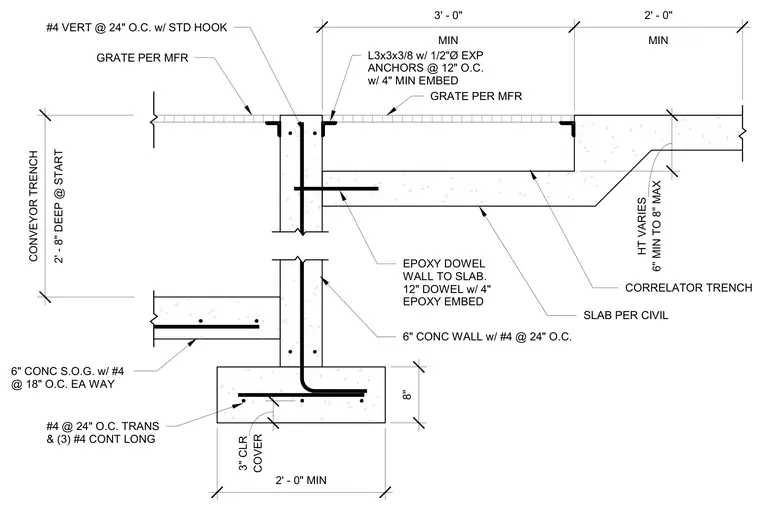

A correlator trench and conveyor pit assembly features a six-inch concrete wall reinforced with number four bars at twenty-four inches on center with standard hooks. The wall ties into a concrete slab-on-grade reinforced with number four bars at eighteen inches on center each way, and sits on an eight-inch concrete footing reinforced with number four transverse bars and three continuous longitudinal number four bars with three inches of clear cover. A twelve-inch epoxy dowel with a four-inch epoxy embedment ties the wall to the slab. The trench opening is framed with L3x3x3/8 angles anchored by half-inch diameter expansion anchors at twelve inches on center with a four-inch minimum embedment to support manufacturer-specified grating.
MIN 3' - 0" MIN 2' - 0" GRATE PER MFR 6" MIN TO 8" MAX HT VARIES CORRELATOR TRENCH SLAB PER CIVIL EPOXY DOWEL WALL TO SLAB. 12" DOWEL w/ 4" EPOXY EMBED 6" CONC WALL w/ #4 @ 24" O.C. 8" 2' - 0" MIN #4 @ 24" O.C. TRANS & (3) #4 CONT LONG 6" CONC S.O.G. w/ #4 @ 18" O.C. EA WAY #4 VERT @ 24" O.C. w/ STD HOOK GRATE PER MFR 2' - 8" DEEP @ START CONVEYOR TRENCH COVER 3" CLR L3x3x3/8 w/ 1/2"Ø EXP ANCHORS @ 12" O.C. w/ 4" MIN EMBED
