Structural · S-RJAWJ

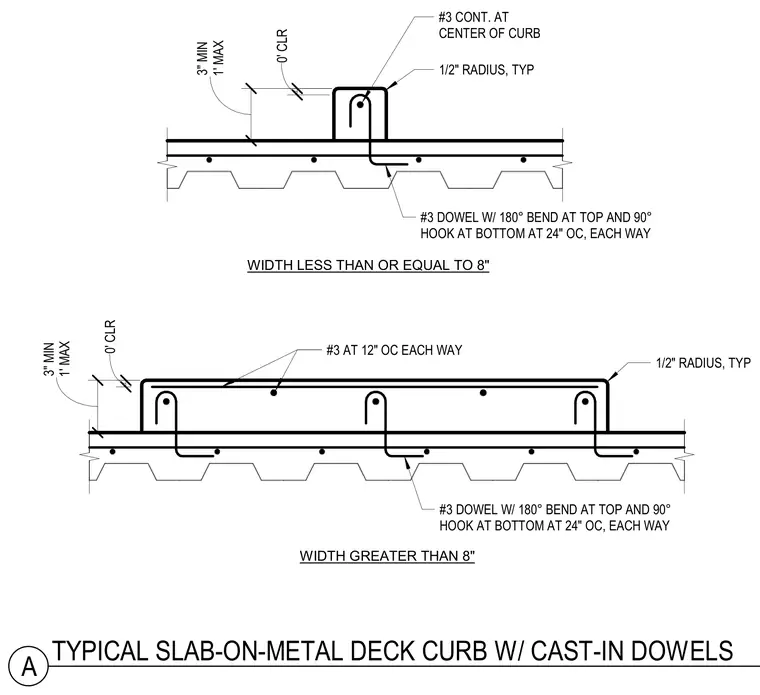

Typical Slab-On-Metal Deck Curb with Cast-In Dowels

Materials

Metal (misc.)

Elements

Floors / Slabs Decks Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

Concrete curbs sit atop a metal deck assembly with cast-in reinforcing dowels anchored through the slab. For curbs eight inches wide or less, a continuous number three bar runs at the center of the curb with a number three dowel featuring a one-hundred-eighty-degree bend at the top and a ninety-degree hook at the bottom spaced at twenty-four inches on center each way. For curbs wider than eight inches, transverse number three bars run at twelve inches on center each way alongside hooked dowels. Edges feature typical one-half-inch radii and zero-clearance conditions, with curb heights ranging from three inches minimum to one foot maximum.
