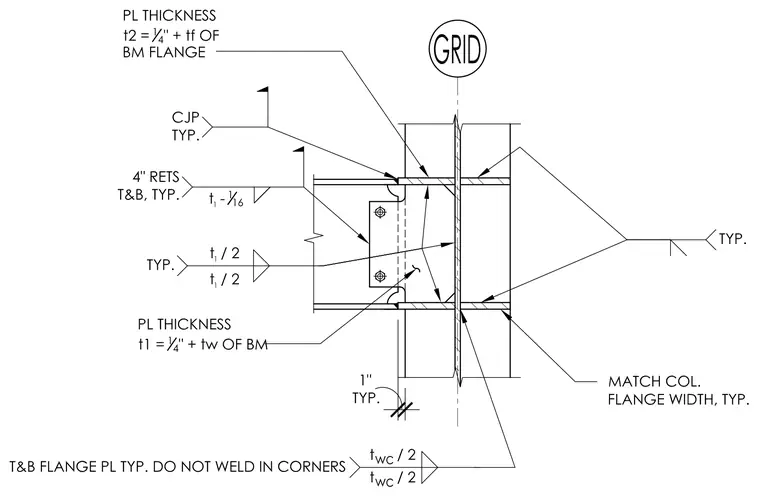

This structural detail shows a moment connection joining a steel beam to a column flange at a grid line. Horizontal continuity plates match the column flange width and have thicknesses determined by the beam flange thickness plus one-quarter inch. Complete joint penetration welds connect the beam flanges to the continuity plates, with top and bottom flange plates left unwelded in the corners. A welded shear tab with two bolts connects the beam web to the column flange, utilizing fillet welds sized to half the web thickness. Four-inch weld returns are specified typically on the top and bottom of the connection.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
