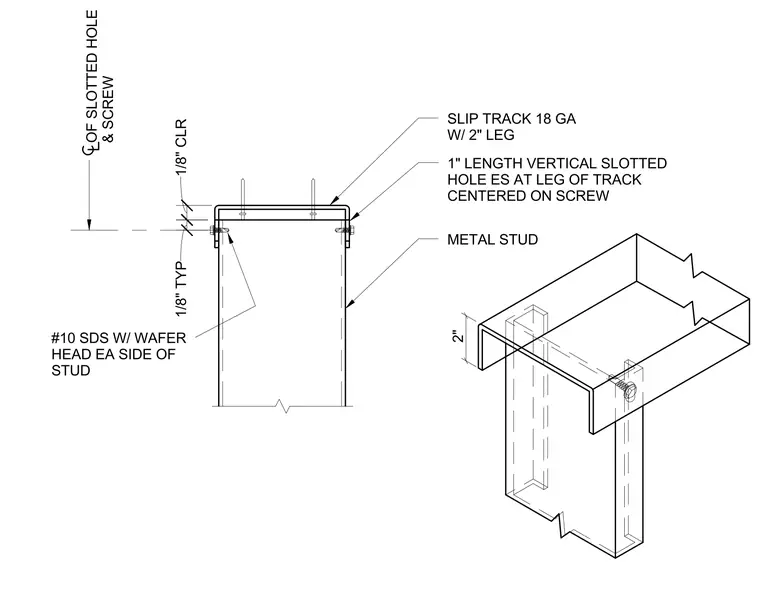

A metal stud connects to an eighteen gauge slip track featuring a two inch leg and one inch length vertical slotted holes at each side of the track, centered on the screw. The assembly maintains a one eighth inch typical clearance and a one eighth inch clearance to the top of the stud. Connection is achieved using number ten self-drilling screws with wafer heads located on each side of the stud.
OF SLOTTED HOLE & SCREW 2" SLIP TRACK 18 GA W/ 2" LEG #10 SDS W/ WAFER HEAD EA SIDE OF STUD 1" LENGTH VERTICAL SLOTTED HOLE ES AT LEG OF TRACK CENTERED ON SCREW METAL STUD 1/8" CLR 1/8" TYP
