A structural steel beam or channel connects to a support using a quarter-inch plate welded to the web with a quarter-inch fillet weld. Two one-inch diameter A325-N bolts fasten the supported member through the plate. The connection detail includes dimensional spacing for the bolt pattern relative to the face of the web.

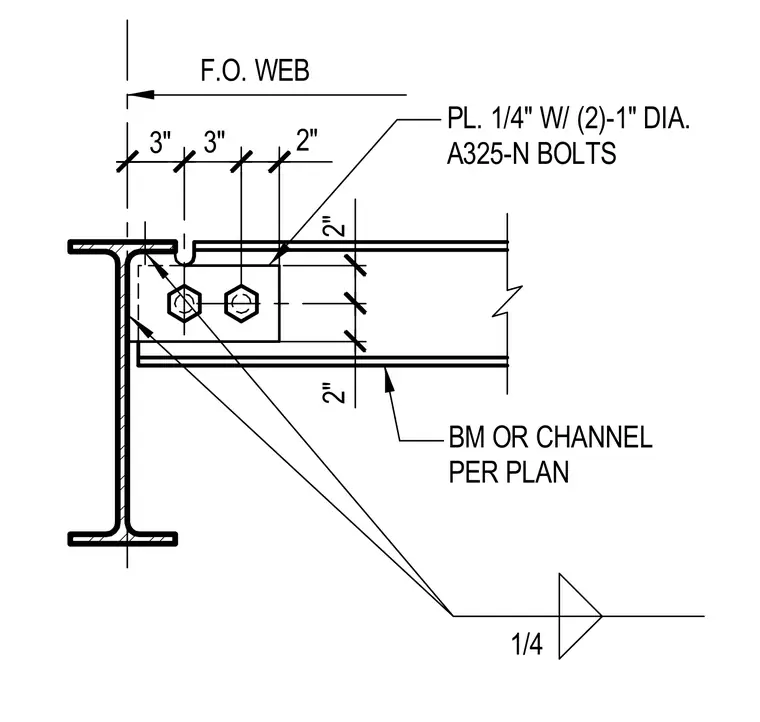

PL. 1/4" W/ (2)-1" DIA. A325-N BOLTS BM OR CHANNEL PER PLAN 1/4 F.O. WEB 3" 2" 3" 2" 2"
