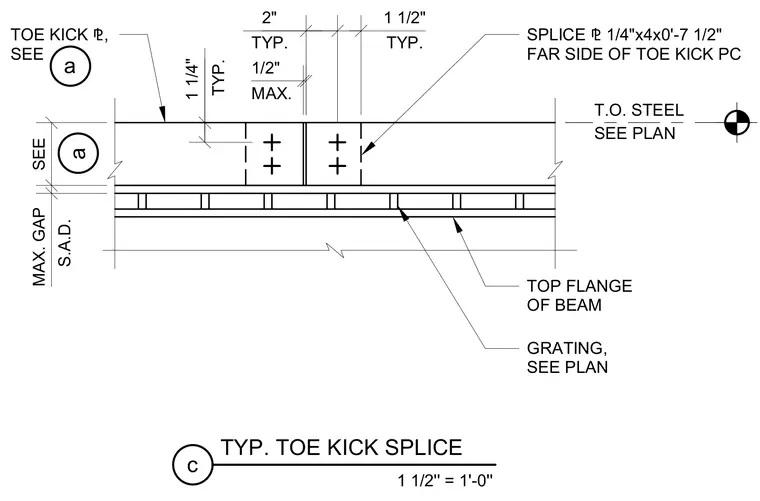

A typical toe kick splice connection mounts to the top flange of a structural steel beam. A splice plate measuring 1/4 inch by 4 inches by 0 feet 7 1/2 inches positions on the far side of the toe kick piece. The assembly maintains a maximum gap and coordinates with metal grating sized per plan. Top of steel elevations and specific dimensions reference the structural framing plan.
TYP. TOE KICK SPLICE c 1 1/2'' = 1'-0'' 2" 1 1/2" TYP. TYP. TYP. SEE MAX. GAP S.A.D. a TOE KICK ⅊ , SEE a SPLICE ⅊ 1/4"x4x0'-7 1/2" FAR SIDE OF TOE KICK PC T.O. STEEL SEE PLAN TOP FLANGE OF BEAM GRATING, SEE PLAN 1 1/4" 1/2" MAX.
