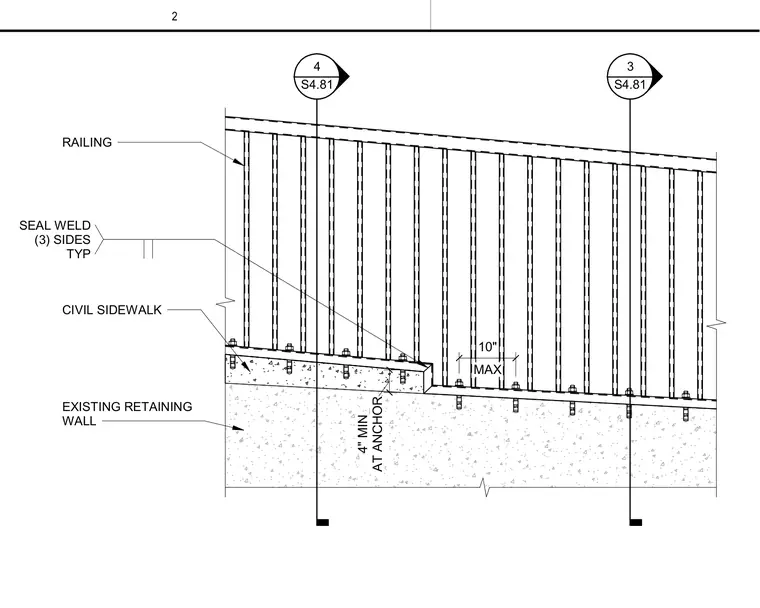

Metal railing mounted atop an existing concrete retaining wall along a civil sidewalk, secured with base anchors requiring a minimum four-inch embedment depth. Vertical posts feature typical seal welds on three sides at the base connection. A maximum ten-inch spacing is maintained between anchor locations along the wall alignment.
CIVIL SIDEWALK EXISTING RETAINING WALL SEAL WELD (3) SIDES TYP AT ANCHOR 4" MIN 3 S4.81 ____ 4 S4.81 ____ RAILING MAX 10" 2
