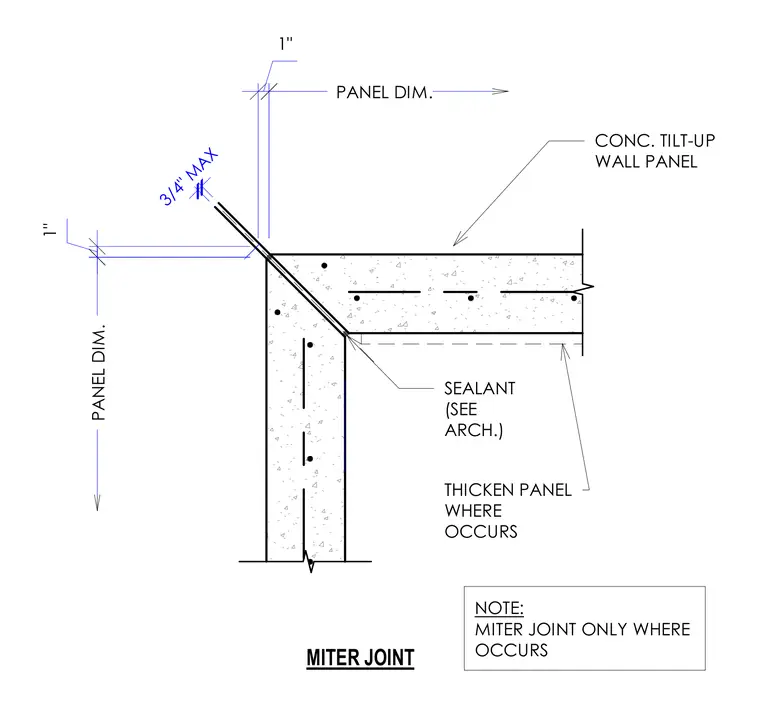

Concrete tilt-up wall panels meet at a mitered corner joint with a maximum three-quarters inch dimension. Sealant is specified per architectural drawings at the exterior corner interface. Panels are thickened locally where required by the geometry. Panel dimensions and offsets are dimensioned at one inch from the outside face.
1" 1" PANEL DIM. PANEL DIM. CONC. TILT-UP WALL PANEL THICKEN PANEL WHERE OCCURS SEALANT (SEE ARCH.) MITER JOINT NOTE: MITER JOINT ONLY WHERE OCCURS 3/4" MAX
