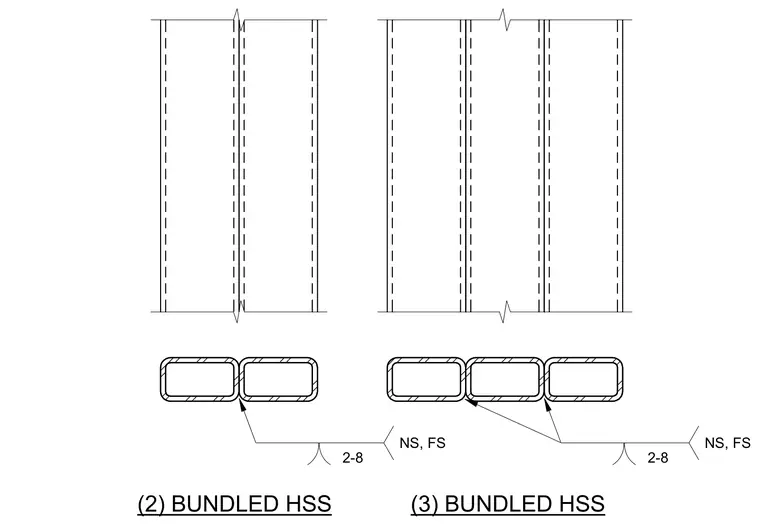

Two and three hollow structural sections are bundled together and connected with near side and far side welds spaced at two feet eight inches. The steel members are arranged side-by-side to form a composite structural support configuration.
