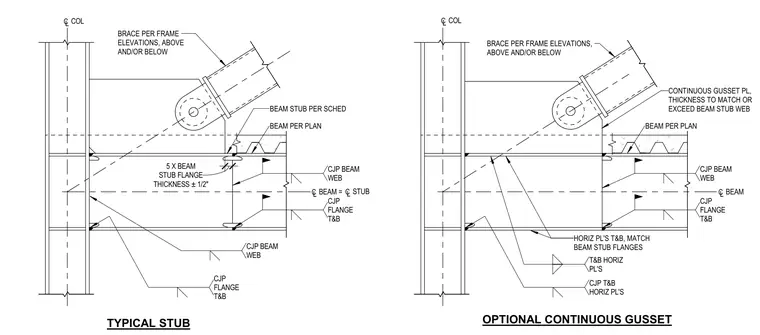

A structural steel buckling-restrained braced frame connection details a beam stub framing into a column web with complete joint penetration welds at the web and top and bottom flanges. The brace connects to a beam stub sized per schedule or an optional continuous gusset plate with a thickness matching or exceeding the beam stub web. Top and bottom horizontal plates match the beam stub flanges and are welded with complete joint penetration welds. Centerlines of the beam, column, and stub align to transfer lateral loads effectively through the structural frame.
CJP BEAM WEB CJP FLANGE T&B BEAM STUB PER SCHED BEAM PER PLAN CJP BEAM WEB CJP FLANGE T&B THICKNESS ± 1/2" 5 X BEAM STUB FLANGE BRACE PER FRAME ELEVATIONS, ABOVE AND/OR BELOW TYPICAL STUB OPTIONAL CONTINUOUS GUSSET CONTINUOUS GUSSET PL, THICKNESS TO MATCH OR EXCEED BEAM STUB WEB BEAM PER PLAN BRACE PER FRAME ELEVATIONS, ABOVE AND/OR BELOW CJP T&B HORIZ PL'S CJP BEAM WEB CJP FLANGE T&B HORIZ PL'S T&B, MATCH BEAM STUB FLANGES T&B HORIZ PL'S C L BEAM = C L COL C L BEAM C L COL C L STUB
