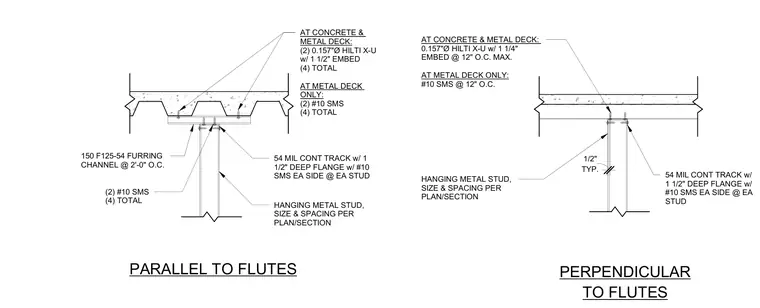

Hanging metal studs are anchored to concrete-filled metal deck or bare concrete overhead using fifty-four mil continuous tracks with one-and-a-half-inch deep flanges. Parallel conditions utilize one-hundred-fifty F-twelve-five-fifty furring channels spaced at two feet on center connected with two number-ten sheet metal screws in a total of four, with attachment via zero-point-one-five-seven-inch diameter Hilti X-U fasteners with one-and-a-half-inch embedment at concrete and metal deck, or two number-ten sheet metal screws at metal deck only. Perpendicular conditions anchor the continuous track directly to the overhead assembly using zero-point-one-five-seven-inch diameter Hilti X-U fasteners with one-and-a-quarter-inch embedment at twelve inches on center maximum for concrete and metal deck, or number-ten sheet metal screws at twelve inches on center for metal deck only. Studs are secured to the continuous track with number-ten sheet metal screws on each side of every stud.
54 MIL CONT TRACK w/ 1 1/2" DEEP FLANGE w/ #10 SMS EA SIDE @ EA STUD HANGING METAL STUD, SIZE & SPACING PER PLAN/SECTION 54 MIL CONT TRACK w/ 1 1/2" DEEP FLANGE w/ #10 SMS EA SIDE @ EA STUD AT CONCRETE & METAL DECK: (2) 0.157"Ø HILTI X-U w/ 1 1/2" EMBED (4) TOTAL AT METAL DECK ONLY: (2) #10 SMS (4) TOTAL AT CONCRETE & METAL DECK: 0.157"Ø HILTI X-U w/ 1 1/4" EMBED @ 12" O.C. MAX. AT METAL DECK ONLY: #10 SMS @ 12" O.C. 150 F125-54 FURRING CHANNEL @ 2'-0" O.C. (2) #10 SMS (4) TOTAL PARALLEL TO FLUTES PERPENDICULAR TO FLUTES HANGING METAL STUD, SIZE & SPACING PER PLAN/SECTION TYP. 1/2"
