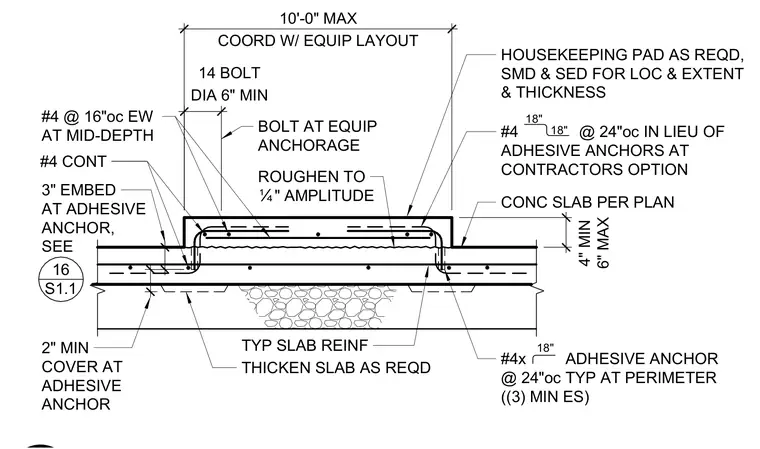

A concrete housekeeping pad is placed over a concrete slab thickened as required, with the interface roughened to one-quarter inch amplitude. The main slab contains typical reinforcement and a continuous number four rebar with three inches of embedment at adhesive anchors. The housekeeping pad incorporates number four rebar at sixteen inches on center each way at mid-depth, with perimeter adhesive anchors spaced at twenty-four inches on center as required. Equipment anchorage bolts are coordinated with the equipment layout to a maximum span of ten feet. Optional number four bars at twenty-four inches on center are provided in lieu of adhesive anchors at the contractor's option.
18" 18" 18" ROUGHEN TO Ë" AMPLITUDE TYP SLAB REINF HOUSEKEEPING PAD AS REQD, SMD & SED FOR LOC & EXTENT & THICKNESS 2" MIN COVER AT ADHESIVE ANCHOR THICKEN SLAB AS REQD #4 @ 24"oc IN LIEU OF ADHESIVE ANCHORS AT CONTRACTORS OPTION CONC SLAB PER PLAN #4x ADHESIVE ANCHOR @ 24"oc TYP AT PERIMETER ((3) MIN ES) BOLT AT EQUIP ANCHORAGE COORD W/ EQUIP LAYOUT 10'-0" MAX DIA 6" MIN 14 BOLT #4 @ 16"oc EW AT MID-DEPTH #4 CONT 3" EMBED AT ADHESIVE ANCHOR, SEE 16 S1.1 4" MIN 6" MAX
