An existing wide flange beam is reinforced with a bottom flange plate attached via a three-sixteenths inch fillet weld with a three to twelve intermittent spacing. A nine-sixteenths inch minimum clearance is maintained at the flange edge. A reinforcement type schedule provides plate widths of seven inches or five and one-half inches and plate thicknesses ranging from one-quarter inch to one inch.

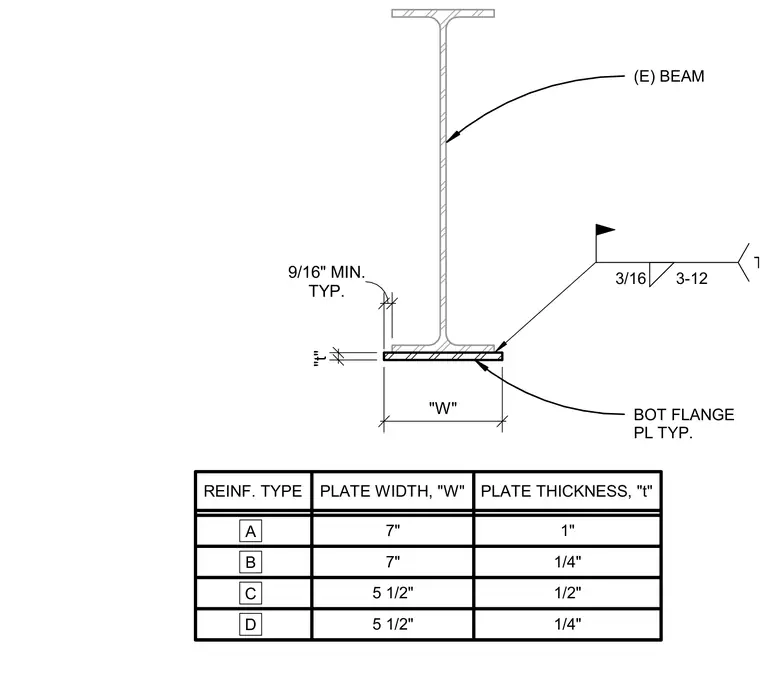

(E) BEAM BOT FLANGE PL TYP. TYP. 9/16" MIN. 3/16 3-12 TYP. "W" "t" REINF. TYPE PLATE WIDTH, "W" A B C D PLATE THICKNESS, "t" 7" 1" 7" 1/4" 5 1/2" 1/2" 5 1/2" 1/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
