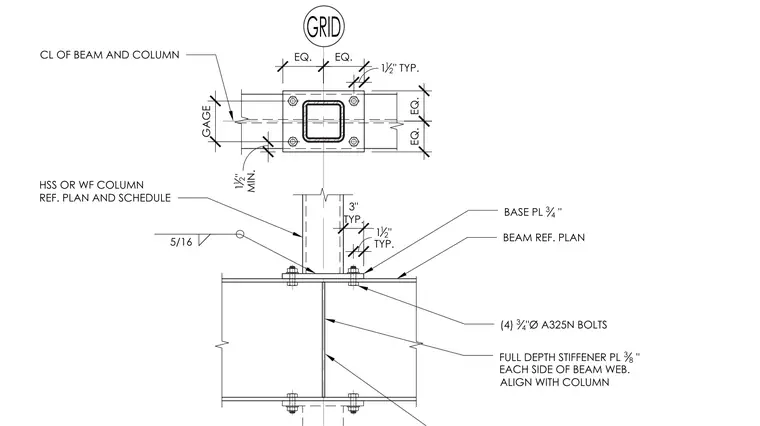

The assembly features a hollow structural section (HSS) or wide flange (WF) column welded to a 3/4-inch base plate, which is bolted to the top flange of a structural steel beam using four 3/4-inch diameter A325N bolts. Full-depth 3/8-inch stiffener plates are provided on each side of the beam web, aligned with the column to transfer loads efficiently. The drawing includes both a plan view and an elevation view showing dimensions, grid alignment, and weld callouts.
Text on the drawing
3" TYP. 1 1 2 " TYP. 1 1 2 " TYP. EQ. EQ. EQ. EQ. GAGE 1 12 " MIN. CL OF BEAM AND COLUMN HSS OR WF COLUMN REF. PLAN AND SCHEDULE 5/16 FULL DEPTH STIFFENER PL 3 8 " EACH SIDE OF BEAM WEB. ALIGN WITH COLUMN (4) 3 4 "Ø A325N BOLTS BEAM REF. PLAN BASE PL 3 4 "
