An HSS column supports beams on each side below a structural slab, maintaining a minimum six-inch dimension for edge of slab. Three-quarter-inch diameter anchor bolts with two-inch minimum embedment tie into the slab. Framing angles per schedule connect via bolts and are welded with five-inch fillet welds on three sides at elevator conditions only, maintaining a one-inch clearance.

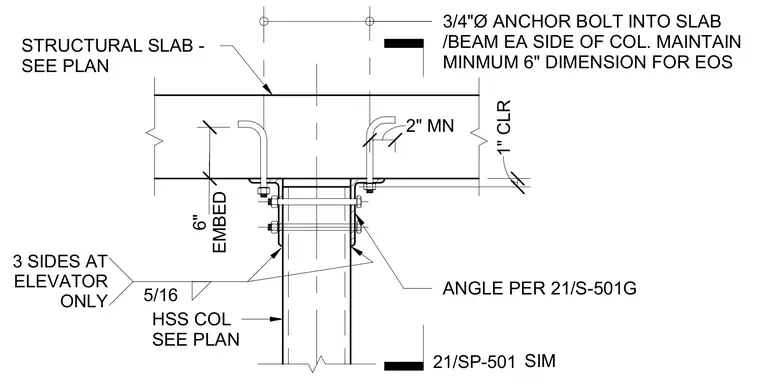

ANGLE PER 21/S-501G HSS COL SEE PLAN 1" CLR 3/4"Ø ANCHOR BOLT INTO SLAB /BEAM EA SIDE OF COL. MAINTAIN MINMUM 6" DIMENSION FOR EOS STRUCTURAL SLAB - SEE PLAN EMBED 6" 2" MN 5/16 3 SIDES AT ELEVATOR ONLY 21/SP-501 SIM
