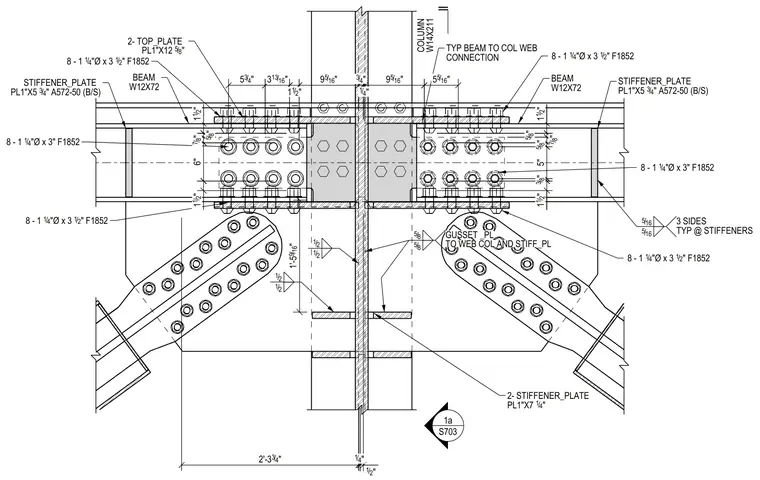

The assembly connects W12x72 steel beams to a W14x211 structural steel column using bolted top plates measuring 1-inch by 12-5/8 inches and typical beam-to-column web connections. Eight 1-1/4-inch diameter by 3-inch F1852 high-strength bolts secure each top plate and beam flange. A pair of 1-inch by 5-3/4-inch A572-50 stiffener plates (B/S) are welded to the beam web with five-sixteenths fillet welds on three sides. Diagonal braces frame into gusset plates welded to the column web and stiffener plates using five-eighths fillet welds, secured with multiple rows of 1-1/4-inch diameter by 3-1/2-inch F1852 bolts. Additional 1-inch by 7-1/4-inch stiffener plates are welded horizontally inside the column flanges to transfer lateral loads from the gusset plates.
STIFFENER_PLATE PL1"X5 3 4 / " A572-50 (B/S) 8 - 1 1 4 / "Ø x 3" F1852 8 - 1 1 4 / "Ø x 3" F1852 BEAM W12X72 12 / 12 / BEAM W12X72 COLUMN W14X211 STIFFENER_PLATE PL1"X5 3 4 / " A572-50 (B/S) CONNECTION TYP BEAM TO COL WEB 516 / 516 / 3 SIDES TYP @ STIFFENERS 1a S703 12 / 12 / 58 / 58 / GUSSET _PL TO WEB COL AND STIFF_PL 2- TOP_PLATE PL1"X12 5 8 / " 5" 1 12 / " 2- STIFFENER_PLATE PL1"X7 1 4 / " 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 9 5 16 / " 1'-5 916 / " 5 5 16 / " 9 5 16 / " 2'-3 3 4 / " 14 / " 34 / " 1 1 2 / " 5 3 4 / " 12 / " 14 / " 1 12 / " 58 / " 78 / " 6" 1 12 / " 58 / " 78 / " 58 / " 38 / " 1 12 / " 3 13 16 / "
