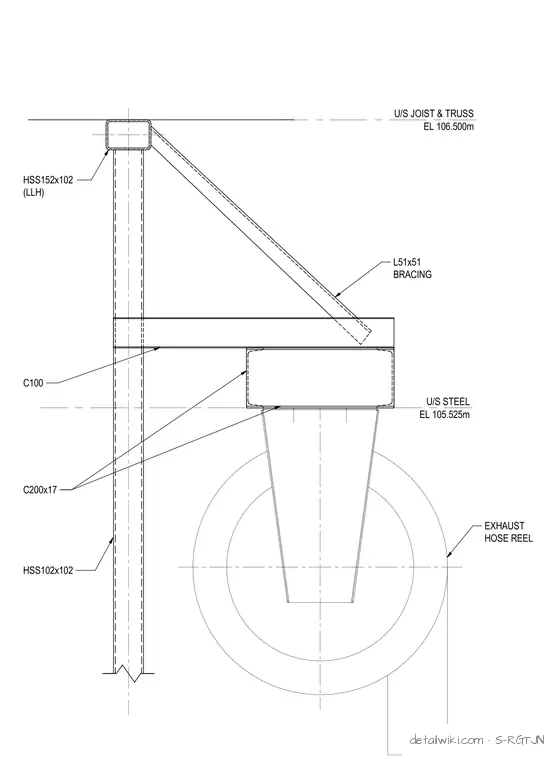

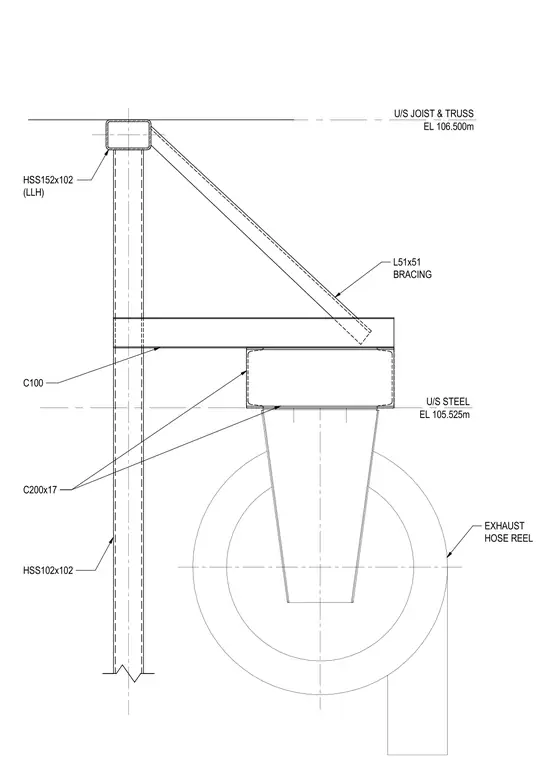

This structural steel detail shows an exhaust hose reel support framework anchored by a vertical hollow structural section column of size HSS102x102. The assembly incorporates a horizontal channel member C100 and a supporting channel C200x17 beneath an upper hollow structural section HSS152x102. An angle brace L51x51 provides lateral bracing from the column to the upper framing assembly. Elevation markers indicate the underside of the joist and truss at 106.500m and the underside of the steel at 105.525m.
HSS102x102 C200x17 C100 HSS152x102 (LLH) EXHAUST HOSE REEL L51x51 BRACING U/S JOIST & TRUSS EL 106.500m U/S STEEL EL 105.525m
