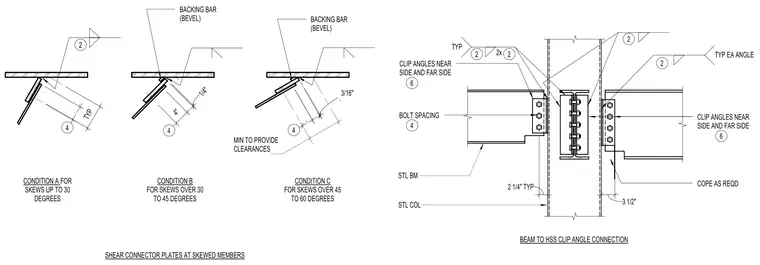

Shear connector plate and clip angle connections join steel beams framing into structural columns at skewed angles. Three distinct conditions accommodate skews up to thirty degrees, over thirty to forty-five degrees, and over forty-five to sixty degrees utilizing bevel backing bars and specified clearances. Clip angles are provided on both near and far sides with standard bolt spacings and required beam copes. A separate elevation details the beam to hollow structural section clip angle connection with symmetrical framing conditions.
SHEAR CONNECTOR PLATES AT SKEWED MEMBERS CONDITION A FOR SKEWS UP TO 30 DEGREES CONDITION B FOR SKEWS OVER 30 TO 45 DEGREES CONDITION C FOR SKEWS OVER 45 TO 60 DEGREES 3/16" MIN TO PROVIDE CLEARANCES BACKING BAR (BEVEL) BACKING BAR (BEVEL) 2 4 TYP 4" 4 1/4" . 4 . . BEAM TO HSS CLIP ANGLE CONNECTION STL COL BOLT SPACING 4 COPE AS REQD STL BM 2 CLIP ANGLES NEAR SIDE AND FAR SIDE 6 CLIP ANGLES NEAR SIDE AND FAR SIDE 6 2 2 2 1/4" TYP 3 1/2" 2 TYP EA ANGLE TYP 2x
