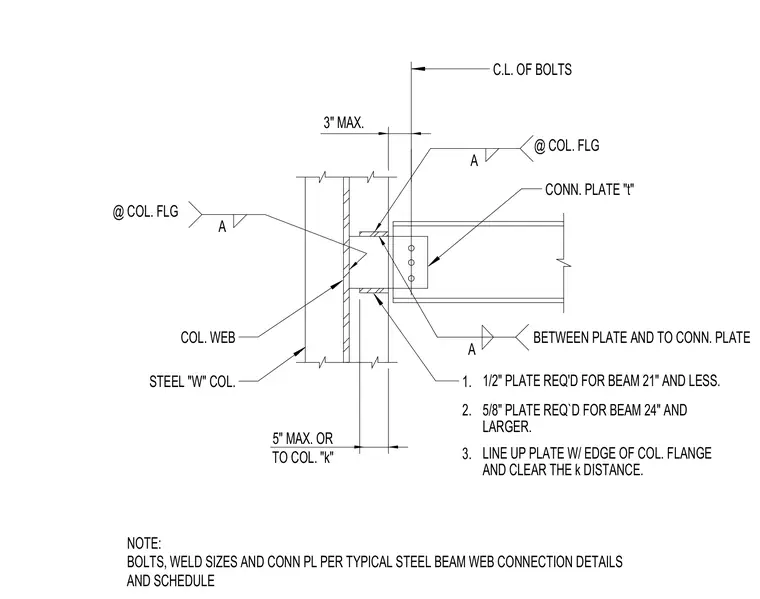

A wide flange steel beam frames into a wide flange steel column web using a connection plate. The connection plate welds to the column flange with a fillet weld and connects to the beam web using bolts. A one-half-inch plate is required for beams twenty-one inches and less, while a five-eighths-inch plate is required for beams twenty-four inches and larger. Line up the plate with the edge of the column flange and clear the k distance. Bolts, weld sizes, and connection plates follow typical steel beam web connection details and schedules.
3" MAX. 5" MAX. OR TO COL. "k" 3. 2. 1. @ COL. FLG A A @ COL. FLG A C.L. OF BOLTS 1/2" PLATE REQ'D FOR BEAM 21" AND LESS. 5/8" PLATE REQ`D FOR BEAM 24" AND LARGER. LINE UP PLATE W/ EDGE OF COL. FLANGE AND CLEAR THE k DISTANCE. CONN. PLATE "t" BETWEEN PLATE AND TO CONN. PLATE STEEL "W" COL. COL. WEB NOTE: BOLTS, WELD SIZES AND CONN PL PER TYPICAL STEEL BEAM WEB CONNECTION DETAILS AND SCHEDULE
