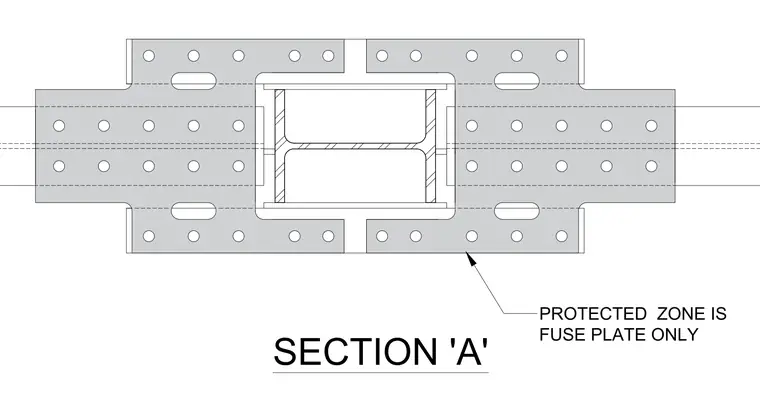

This cross-section details a Durafuse structural steel moment connection framing assembly, isolating the protected zone to the fuse plate only. The drawing shows the wide-flange beam profile surrounded by bolted gusset and fuse plates with designated bolt patterns and slot configurations. A callout clarifies that the protected zone is restricted exclusively to the fuse plate.
