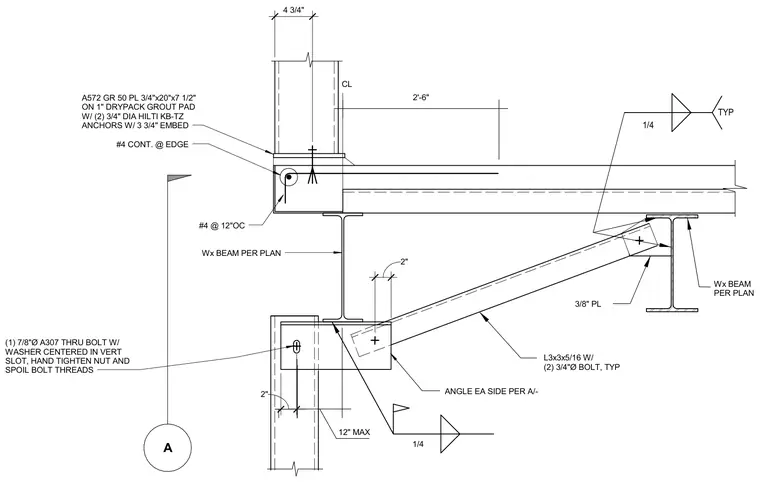

An ASTM A572 Grade 50 steel plate measuring 3/4 inch by 20 inches by 7 1/2 inches rests on a 1-inch drypack grout pad and is anchored with two 3/4-inch diameter Hilti KB-TZ expansion anchors with a 3 3/4-inch embedment. Continuous number 4 reinforcing bars run along the edge and at 12 inches on center. A wide-flange beam per plan frames into the assembly, supported by an angle on each side connected with two 3/4-inch diameter bolts. A diagonal brace consisting of an L3x3x5/16 angle connects using a 3/8-inch plate and fillet welds sized at 1/4 inch. A single 7/8-inch diameter ASTM A307 through-bolt with a washer is centered in a vertical slot, hand-tightened with the bolt threads spoiled.
12" MAX 2'-6" L3x3x5/16 W/ (2) 3/4"Ø BOLT, TYP (1) 7/8"Ø A307 THRU BOLT W/ WASHER CENTERED IN VERT SLOT, HAND TIGHTEN NUT AND SPOIL BOLT THREADS #4 CONT. @ EDGE A572 GR 50 PL 3/4"x20"x7 1/2" ON 1" DRYPACK GROUT PAD W/ (2) 3/4" DIA HILTI KB-TZ ANCHORS W/ 3 3/4" EMBED Wx BEAM PER PLAN 1/4 #4 @ 12"OC CL Wx BEAM PER PLAN 3/8" PL 1/4 TYP 4 3/4" 2" 2" ANGLE EA SIDE PER A/- A
