Structural · S-RG5S4

Weld Pass Sequence Detail

Materials

Steel Metal (misc.)

Elements

Columns Beams Connections / Plates Roof / Floor Openings

Connections

Moment Connection Welded Connection

About this detail

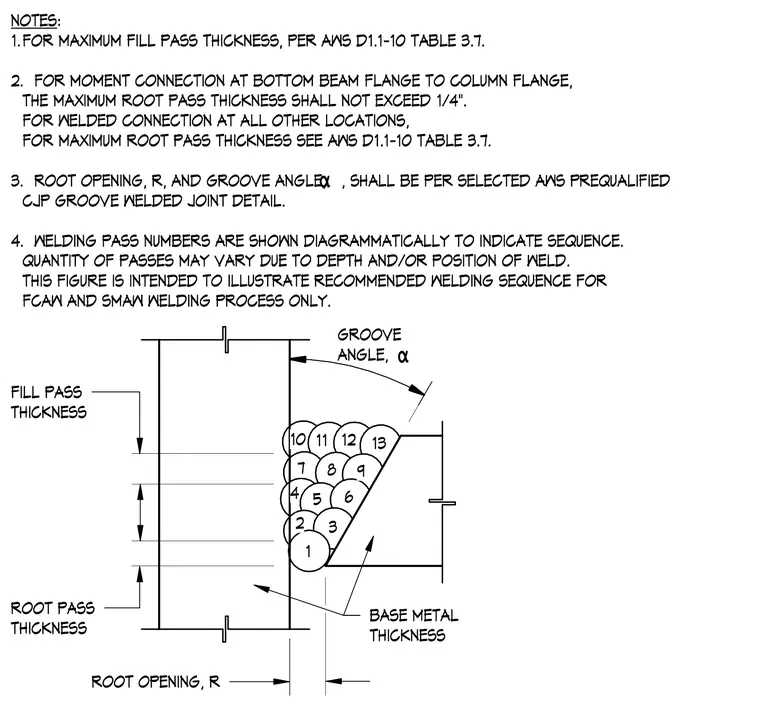

Multi-pass welding sequence for flux-cored arc welding and shielded metal arc welding processes on structural steel connections. Numbered circles designate individual weld passes within the groove angle to indicate the correct deposition order. The root pass thickness is limited to a maximum of one-fourth of an inch for bottom beam flange to column flange moment connections, with other locations governed by AWS D1.1 table 3.7. Root opening and groove angle dimensions comply with selected American Welding Society prequalified complete joint penetration groove welded joint details. The total quantity of passes may vary depending on the depth and position of the weld.
