An HSS guiderail column is anchored to the edge of a concrete slab adjacent to an elevator shaft wall using a custom bent plate configuration. The structural connection incorporates two three-quarter-inch diameter through bolts centered on long slotted holes for adjustability, with three-sixteenth-inch fillet welds typical at the bracket connections. A number five weldable reinforcing bar at twelve inches on center provides class B lap splices with the slab reinforcement around the elevator shaft. The supporting beam and top of steel elevations are sized per plan.

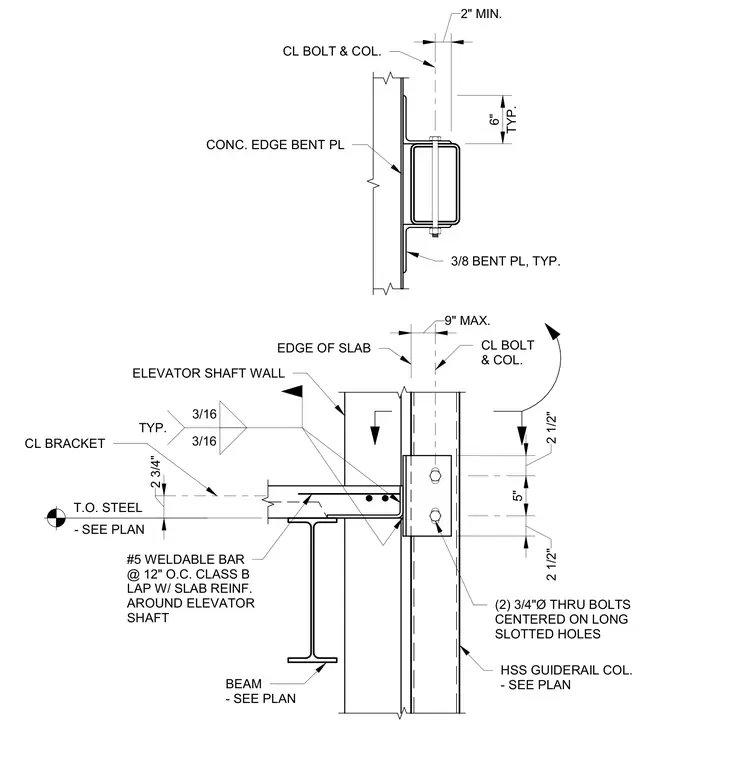

CL BOLT & COL. CONC. EDGE BENT PL 3/8 BENT PL, TYP. EDGE OF SLAB ELEVATOR SHAFT WALL 3/16 3/16 TYP. CL BRACKET T.O. STEEL - SEE PLAN BEAM - SEE PLAN HSS GUIDERAIL COL. - SEE PLAN (2) 3/4"Ø THRU BOLTS CENTERED ON LONG SLOTTED HOLES CL BOLT & COL. 2 3/4" 2 1/2" 5" 2 1/2" 2" MIN. 9" MAX. #5 WELDABLE BAR @ 12" O.C. CLASS B LAP W/ SLAB REINF. AROUND ELEVATOR SHAFT TYP. 6"
