Structural · S-RFY9Q

Dunnage Platform Beam to Beam Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Beam-to-Beam Bolted Connection

About this detail

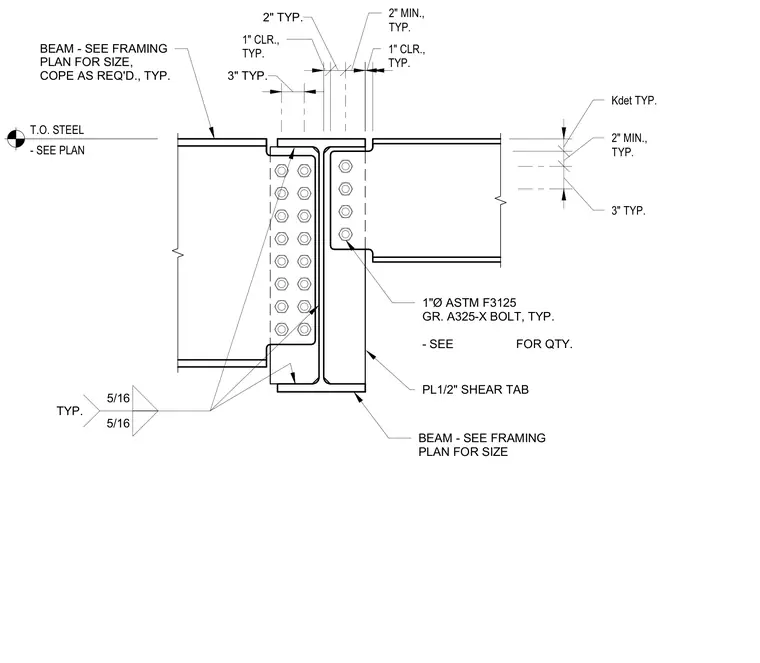

A supported steel framing beam is coped as required and connected to a supporting steel beam using a one-half-inch thick shear tab welded to the support. The connection is secured with one-inch diameter ASTM F3125 Grade A325-X bolts with quantities sized per the framing plan. Five-sixteenth-inch fillet welds attach the shear tab to the supporting beam. Standard clearances, edge distances, and k-detailing dimensions are maintained throughout the connection assembly.
