Structural · S-RFVWF

Buckling-Restrained Braced Frame Floor Slab Slot Detail

Materials

Concrete

Elements

Decks Bracing

Connections

Braced Frame Connection

About this detail

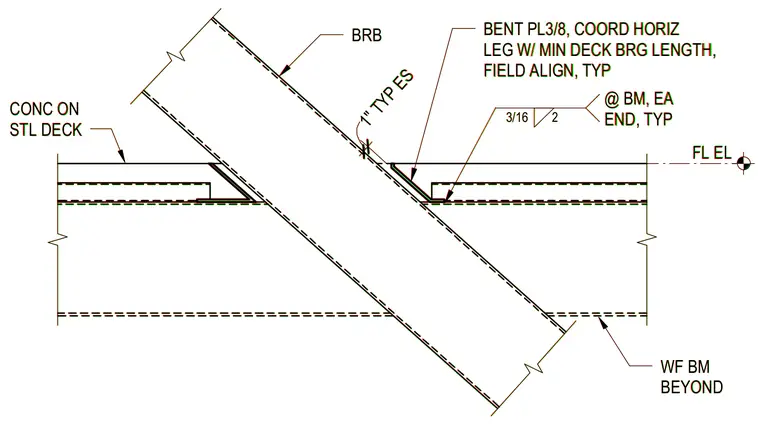

A buckling-restrained brace intersects a wide-flange beam beyond and passes through a concrete on metal deck floor slab. A 3/8-inch bent plate coordinates the horizontal leg with the minimum deck bearing length and is field-aligned. Fillet welds of 3/16-inch size connect the assembly with a typical one-inch edge space.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
