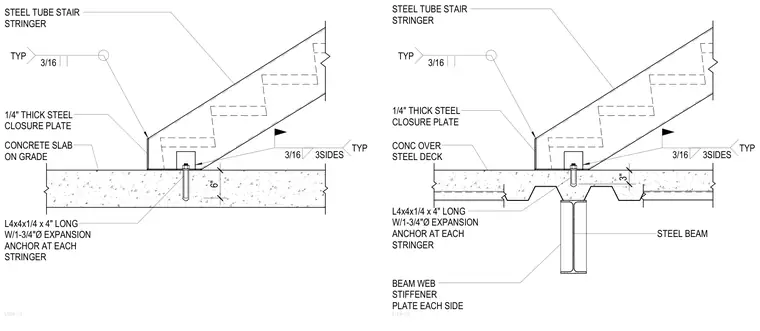

The steel tube stair stringer bears onto a concrete slab on grade or concrete over steel deck, secured with a four-inch-long L4x4x1/4 angle welded to the stringer with a three-sixteenth-inch fillet weld on three sides. A three-quarter-inch diameter expansion anchor fastens each angle to the concrete slab or deck. A one-quarter-inch thick steel closure plate caps the end of the stair stringer. For the framed condition, a steel beam supports the concrete deck with beam web stiffener plates installed on each side.
L4x4x1/4 x 4" LONG W/1-3/4"Ø EXPANSION ANCHOR AT EACH STRINGER CONCRETE SLAB ON GRADE STEEL TUBE STAIR STRINGER 1/4" THICK STEEL CLOSURE PLATE STAIR-11 3/16 TYP 3/16 3SIDES TYP 6" L4x4x1/4 x 4" LONG W/1-3/4"Ø EXPANSION ANCHOR AT EACH STRINGER CONC OVER STEEL DECK STEEL TUBE STAIR STRINGER 1/4" THICK STEEL CLOSURE PLATE STEEL BEAM BEAM WEB STIFFENER PLATE EACH SIDE STAIR-12 3/16 TYP 3/16 3SIDES TYP 3"
