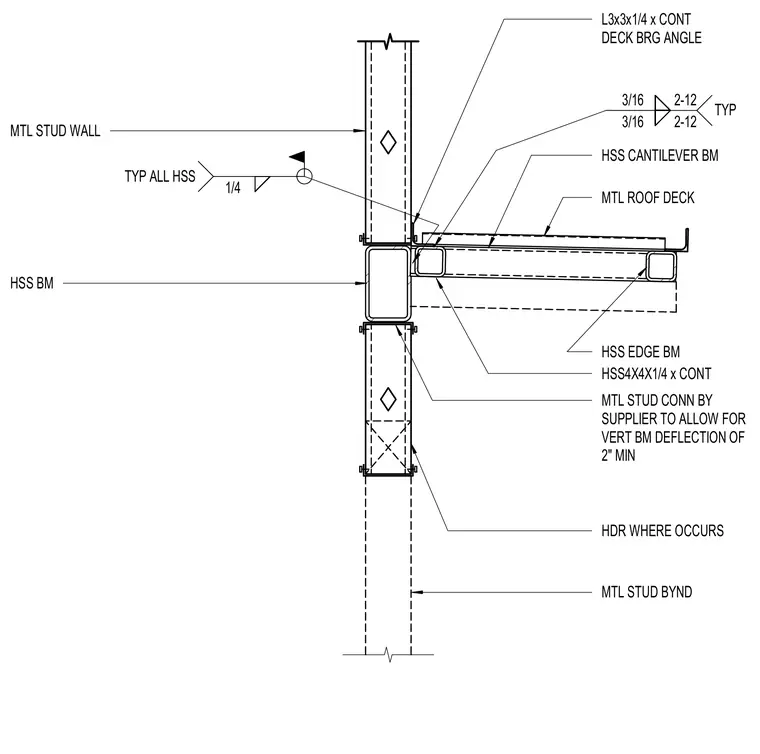

Structural framing and roof connection for a canopy utilizing hollow structural section steel members. A continuous L3x3x1/4 angle serves as the deck bearing angle, welded with 3/16-inch fillet welds. The HSS cantilever beam and HSS edge beam support the metal roof deck. An HSS 4x4x1/4 continuous member frames into the primary HSS beam. The metal stud wall above connects via a slip connection provided by the supplier to allow for a vertical beam deflection of two inches minimum.
HSS BM HSS CANTILEVER BM HSS EDGE BM MTL ROOF DECK MTL STUD CONN BY SUPPLIER TO ALLOW FOR VERT BM DEFLECTION OF 2" MIN HDR WHERE OCCURS MTL STUD BYND MTL STUD WALL 1/4 TYP ALL HSS L3x3x1/4 x CONT DECK BRG ANGLE HSS4X4X1/4 x CONT 3/16 3/16 2-12 2-12 TYP
