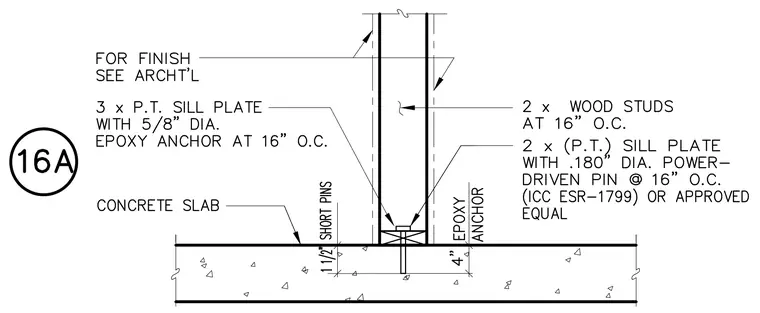

Two-by wood studs at sixteen inches on center bear on a pressure-treated wood sill plate anchored to a concrete slab with five-eighths-inch diameter epoxy anchors at sixteen inches on center. An alternative sill plate detail incorporates a pressure-treated plate fastened with point-one-eight-zero-inch diameter power-driven pins at sixteen inches on center per ICC ESR-one-seven-nine-nine or approved equal. Finishes are specified per architectural drawings.
