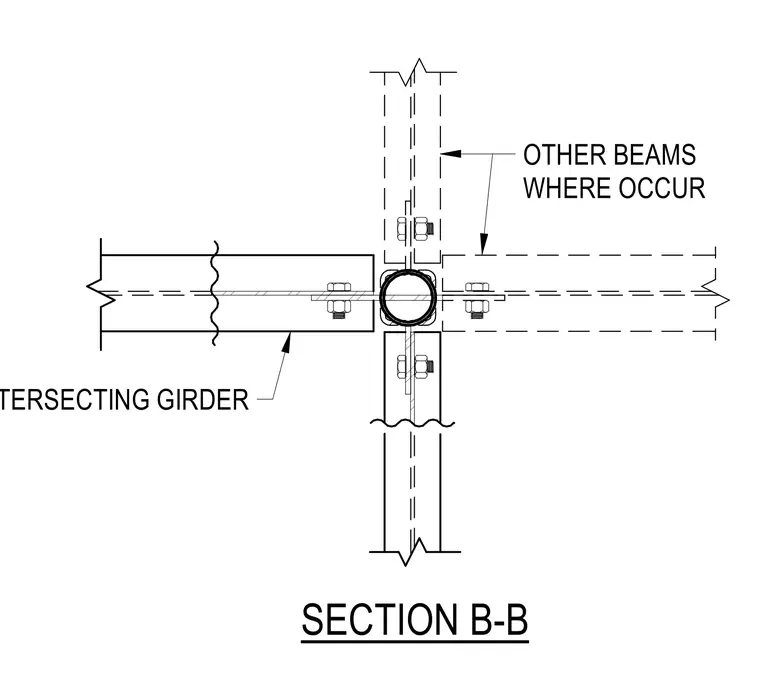

Intersecting steel beams frame into a central structural column. The primary intersecting girder connects via bolted shear tabs welded to the column web and flange. Additional framing beams connect orthogonally to the hollow structural section column where required by the structural layout. Standard structural bolts secure the beam webs to the connection plates.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
