Structural · S-RF6DG

Conc. Pile Cap

Materials

Concrete

Elements

Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

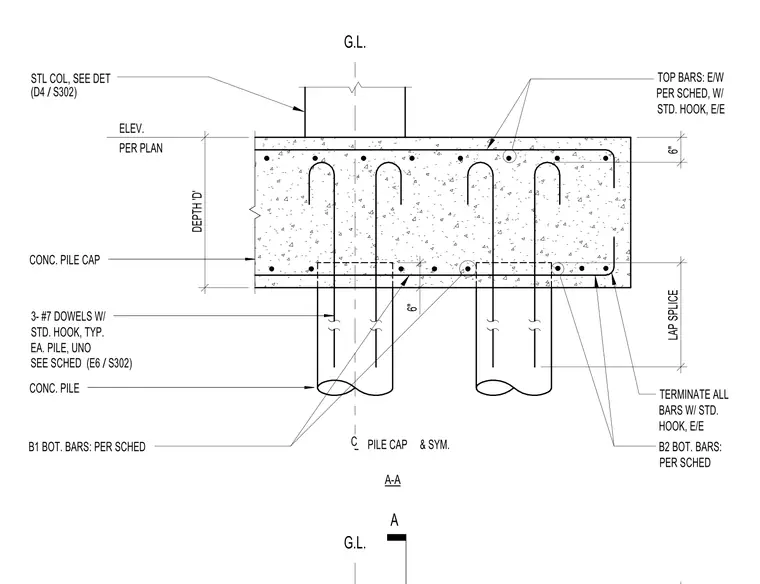

A reinforced concrete pile cap supports a structural steel column at a variable depth designated as 'D'. Three number seven dowels with standard hooks are embedded into each concrete pile unless noted otherwise, providing a lap splice into the cap. Top bars are placed in each direction per schedule with standard hooks at each end, terminating all bars with standard hooks. Bottom bars B1 and B2 are sized per schedule and run continuously through the cap.
