Existing tie beams and pile cap are demolished after temporary shoring is installed to support the remaining column. A new concrete footing and pile cap are constructed around the existing concrete pile, maintaining a three-inch typical clearance. A bond breaker is applied around the existing pile, and existing concrete surfaces are roughened to a quarter-inch minimum amplitude. The existing pile is demolished after the new footing reaches twenty-eight-day concrete strength.

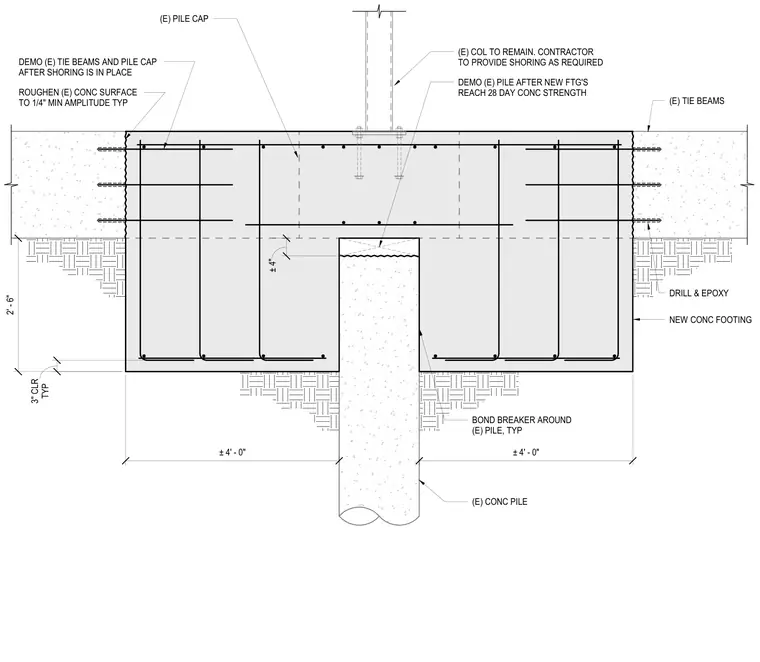

± 4' - 0" 2' - 6" ± 4" DEMO (E) TIE BEAMS AND PILE CAP AFTER SHORING IS IN PLACE (E) COL TO REMAIN. CONTRACTOR TO PROVIDE SHORING AS REQUIRED DEMO (E) PILE AFTER NEW FTG'S REACH 28 DAY CONC STRENGTH (E) TIE BEAMS ± 4' - 0" (E) CONC PILE DRILL & EPOXY BOND BREAKER AROUND (E) PILE, TYP ROUGHEN (E) CONC SURFACE TO 1/4" MIN AMPLITUDE TYP NEW CONC FOOTING (E) PILE CAP TYP 3" CLR
