Structural · S-REY7F

Typical Concrete Tilt-Up Panel Corner /

Materials

Concrete Steel

Elements

Roofs Decks Arches Anchors / Embeds

Connections

Embed Plate

About this detail

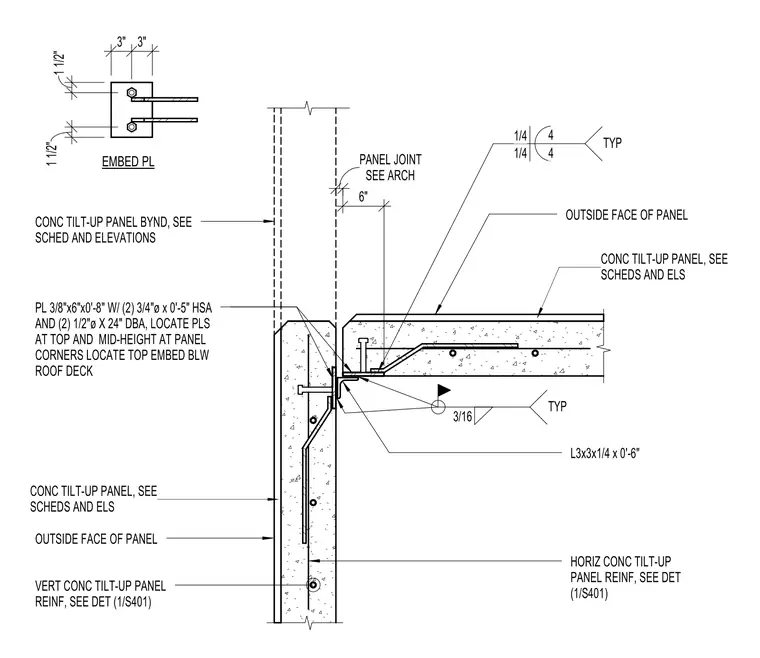

Two concrete tilt-up wall panels meet at a corner joint with a six-inch architectural gap. An embedded steel plate measuring three-eighths by six inches by zero-foot-eight inches anchors into the concrete with two three-quarter-inch-diameter by zero-foot-five-inch stud anchors and two one-half-inch-diameter by twenty-four-inch deformed bar anchors. These embed plates are located at the top and mid-height at panel corners, with the top embed positioned below the roof deck. A three-by-three-by-quarter-inch angle measuring zero-foot-six-inches long bridges the corner connection. Vertical and horizontal concrete tilt-up panel reinforcement continues per detail one on sheet S401.
