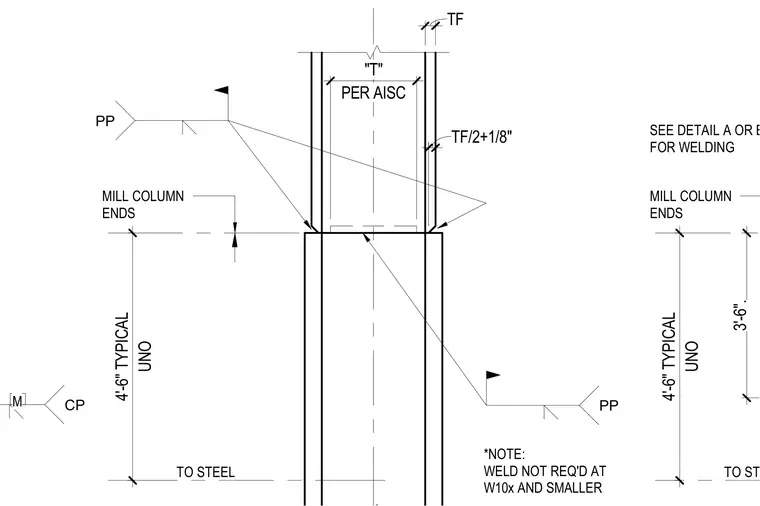

A column splice connection transitions between different column sizes. The assembly features mill column ends with specified dimensions per AISC standards, including flange thickness offsets and partial penetration welds. Notes indicate that welding is not required at W10x and smaller columns to steel. Clearances and dimensional tolerances are provided for typical field conditions.
SEE DETAIL A OR B FOR WELDING *NOTE: WELD NOT REQ'D AT W10x AND SMALLER TO STEEL CP MILL COLUMN ENDS PP TO STEEL UNO 4'-6" TYPICAL PER AISC "T" TF TF/2+1/8" PP 3'-6". UNO 4'-6" TYPICAL MILL COLUMN ENDS M
