A three-quarter-inch thick steel embed plate centers on a column centerline with a minimum one-foot extension on each side. Two three-quarter-inch by six-inch by two-foot side plates weld to the main plate with three-sixteenth-inch fillet welds. Four number eight A706 Grade 80 reinforcing bars anchor the assembly symmetrically about the column centerline. A one-half-inch fillet weld secures the side plates to the embed plate.

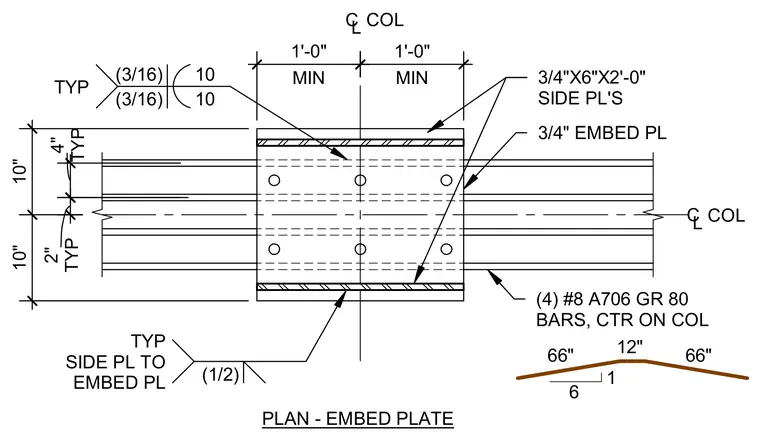

CL COL CL COL 10" 10" MIN 1'-0" 3/4" EMBED PL PLAN - EMBED PLATE MIN 1'-0" (1/2) TYP SIDE PL TO EMBED PL 3/4"X6"X2'-0" SIDE PL'S (3/16) 10 (3/16) 10 TYP (4) #8 A706 GR 80 BARS, CTR ON COL 12" 66" 66" 6 1 TYP 4" TYP 2"
