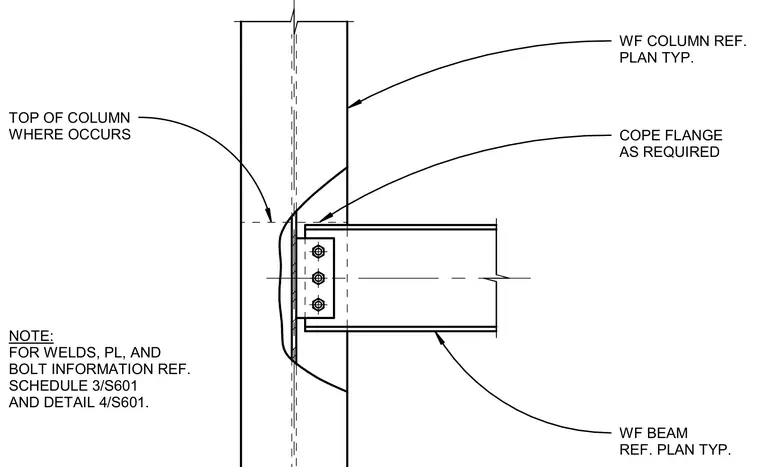

A wide flange beam connects to the web of a wide flange column with a bolted shear plate. The top flange of the beam is coped as required to clear the column flange or geometry. The top of the column is indicated where it occurs. Additional weld, plate, and bolt information is referenced to schedule 3/S601 and detail 4/S601.
WF COLUMN REF. PLAN TYP. COPE FLANGE AS REQUIRED WF BEAM REF. PLAN TYP. TOP OF COLUMN WHERE OCCURS NOTE: FOR WELDS, PL, AND BOLT INFORMATION REF. SCHEDULE 3/S601 AND DETAIL 4/S601.
