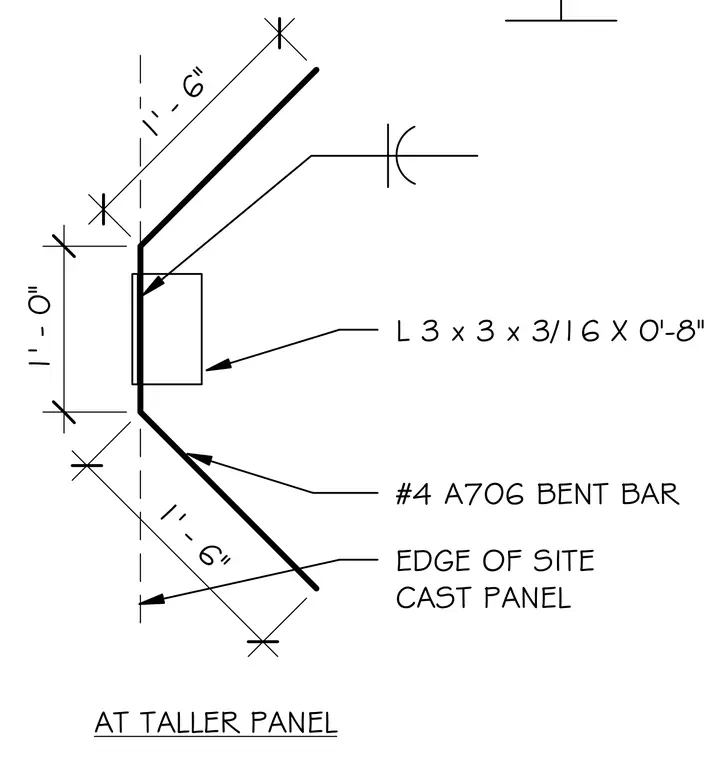

The assembly features a number four ASTM A706 bent reinforcing bar tied into the edge of a site-cast concrete panel. An L 3 x 3 x 3/16 by zero-foot-eight-inch angle is embedded at the mid-height transition point. Dimensions indicate a one-foot-six-inch offset for the upper and lower panel segments meeting a one-foot central section.
AT TALLER PANEL 1' - 6" 1' - 0" 1' - 6" #4 A706 BENT BAR EDGE OF SITE CAST PANEL L 3 x 3 x 3/16 X 0'-8"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
