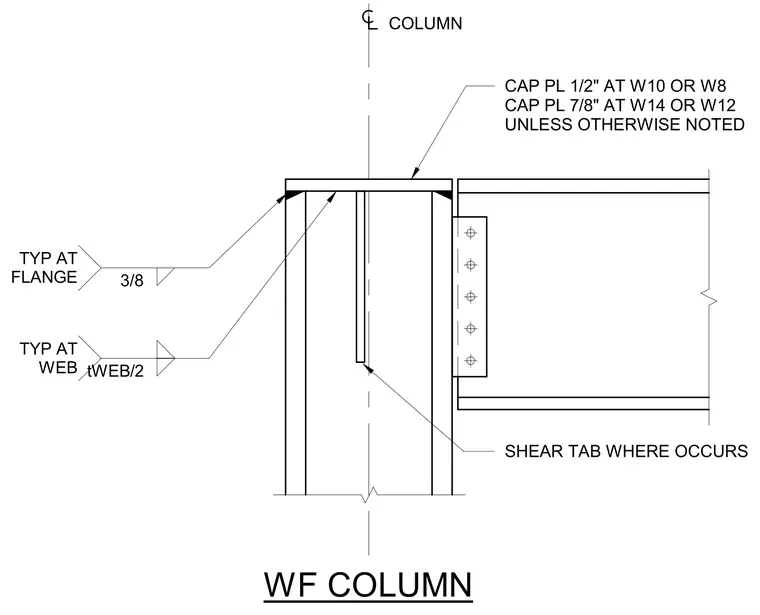

A structural steel wide-flange column is topped with a cap plate welded to the column flanges and web. The cap plate thickness is specified as one-half inch at W10 or W8 columns, and seven-eighths inch at W14 or W12 columns unless noted otherwise. A three-eighths-inch fillet weld is typical at the flange connection, while a fillet weld sized at half the web thickness is typical at the web stiffener plate. A shear tab is provided where indicated for beam framing connections.
CAP PL 1/2" AT W10 OR W8 CAP PL 7/8" AT W14 OR W12 UNLESS OTHERWISE NOTED SHEAR TAB WHERE OCCURS COLUMN tWEB/2 TYP AT WEB 3/8 TYP AT FLANGE WF COLUMN
