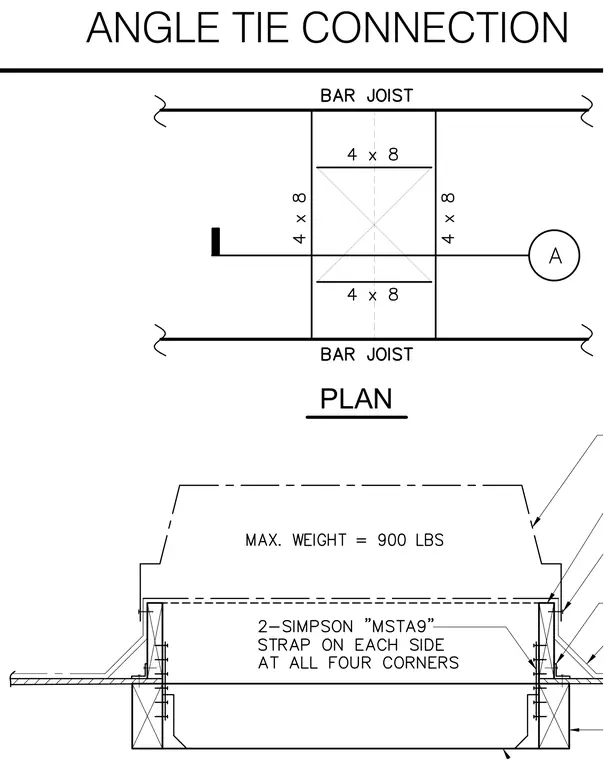

An angle tie connection framed between two parallel bar joists with structural framing members sized four by eight inches. Simpson MSTA9 straps secure each of the four corners with two straps per side. The assembly accommodates a maximum weight of nine hundred pounds.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
