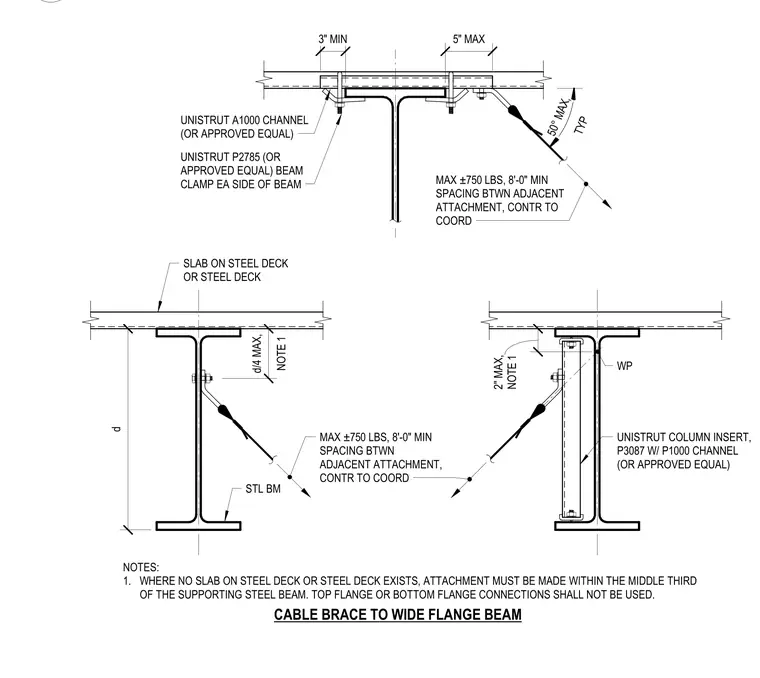

Cable bracing attaches to wide flange steel beams using Unistrut A1000 channels and P2785 beam clamps installed on each side of the beam flange. Where slab on steel deck is absent, locate attachments within the middle third of the beam web, avoiding top and bottom flange connections. The assembly supports a maximum load of 750 pounds with a minimum spacing of 8 feet between adjacent attachments. Alternative configurations include Unistrut P3087 column inserts with P1000 channels. Bracing angles are limited to a maximum of 50 degrees, with specific vertical offsets defined relative to the beam depth.
Text on the drawing
STL BM NOTES: 1. WHERE NO SLAB ON STEEL DECK OR STEEL DECK EXISTS, ATTACHMENT MUST BE MADE WITHIN THE MIDDLE THIRD OF THE SUPPORTING STEEL BEAM. TOP FLANGE OR BOTTOM FLANGE CONNECTIONS SHALL NOT BE USED. MAX ±750 LBS, 8'-0" MIN SPACING BTWN ADJACENT ATTACHMENT, CONTR TO COORD UNISTRUT COLUMN INSERT, P3087 W/ P1000 CHANNEL (OR APPROVED EQUAL) SLAB ON STEEL DECK OR STEEL DECK CABLE BRACE TO WIDE FLANGE BEAM WP NOTE 1 2" MAX, NOTE 1 d/4 MAX, d TYP 50° MAX, UNISTRUT A1000 CHANNEL (OR APPROVED EQUAL) UNISTRUT P2785 (OR APPROVED EQUAL) BEAM CLAMP EA SIDE OF BEAM MAX ±750 LBS, 8'-0" MIN SPACING BTWN ADJACENT ATTACHMENT, CONTR TO COORD 3" MIN 5" MAX
