A dropped steel deck framing connects to a hollow structural section column using Grade 50 plates sized to match the bottom flange width and thickness. Full-height stiffener plates are welded near side and far side to the column web. Base plates and bearing plates secure the framing connections with quarter-inch fillet welds.

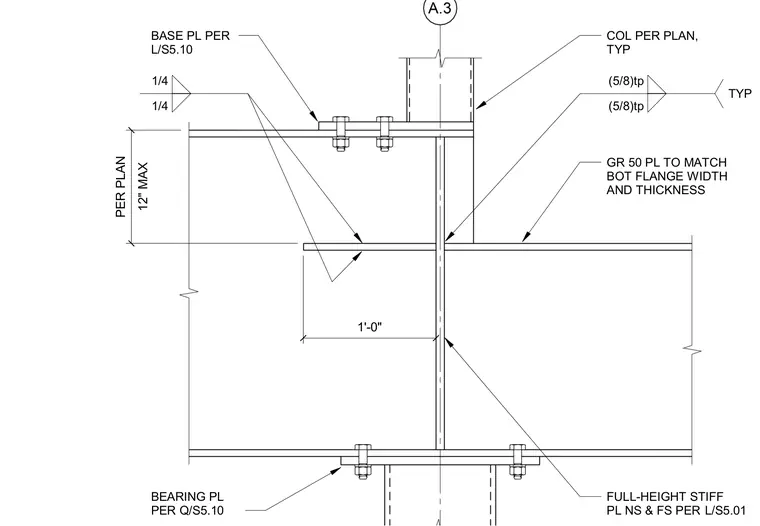

1'-0" GR 50 PL TO MATCH BOT FLANGE WIDTH AND THICKNESS BEARING PL PER BASE PL PER 12" MAX PER PLAN L/S5.10 Q/S5.10 1/4 1/4 COL PER PLAN, TYP (5/8)tp (5/8)tp TYP FULL-HEIGHT STIFF PL NS & FS PER L/S5.01
