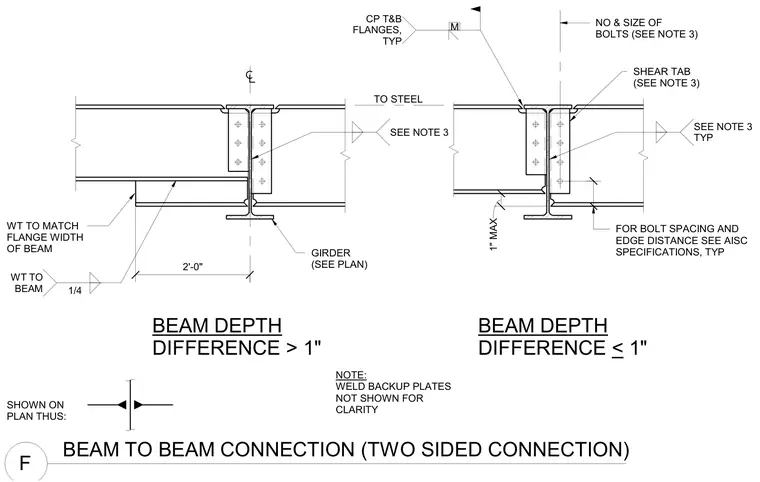

A structural detail for a two-sided beam-to-girder connection configured for both matching and differing beam depths. For conditions where the beam depth difference exceeds one inch, a WT shape matching the flange width of the beam is provided and welded to the underside with a quarter-inch fillet weld, extending two feet from the centerline. For conditions where the beam depth difference is one inch or less, standard shear tabs are bolted to the web of the supporting girder with sizing and bolt counts specified per plan. Complete penetration welds are specified at the top and bottom flanges with a one-inch maximum clearance, and weld backup plates are omitted from the drawing for clarity. Bolt spacing and edge distances follow AISC specifications throughout.
BEAM TO BEAM CONNECTION (TWO SIDED CONNECTION) F BEAM DEPTH DIFFERENCE > 1" BEAM DEPTH DIFFERENCE < 1" NOTE: WELD BACKUP PLATES NOT SHOWN FOR CLARITY TO STEEL NO & SIZE OF BOLTS (SEE NOTE 3) FOR BOLT SPACING AND EDGE DISTANCE SEE AISC SPECIFICATIONS, TYP SHEAR TAB (SEE NOTE 3) GIRDER (SEE PLAN) WT TO MATCH FLANGE WIDTH OF BEAM SHOWN ON PLAN THUS: 2'-0" 1/4 WT TO BEAM SEE NOTE 3 1" MAX . CP T&B FLANGES, TYP SEE NOTE 3 TYP M
